Oil Pump Screen and Pickup Tube: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install a new O-ring seal on the oil pump screen and pickup tube.
    • Lubricate the O-ring seal with clean engine oil.
  2. Install the oil pump screen and pickup tube.
    1. Position the oil pump screen and pickup tube.
    2. Install the bolts and tighten to 10 Nm (89 lb-in).

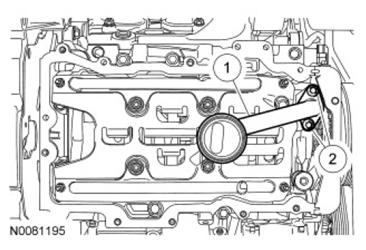

      Fig 1: Identifying Oil Pump Screen And Pickup Tube And Bolts
      G07441250Courtesy of FORD MOTOR CO.
  3. Install the oil pan. For additional information, refer to OIL PAN  in this service information.
