Upper Radiator Support Brackets

WARNING: This page is about a different variant/trim than selected.

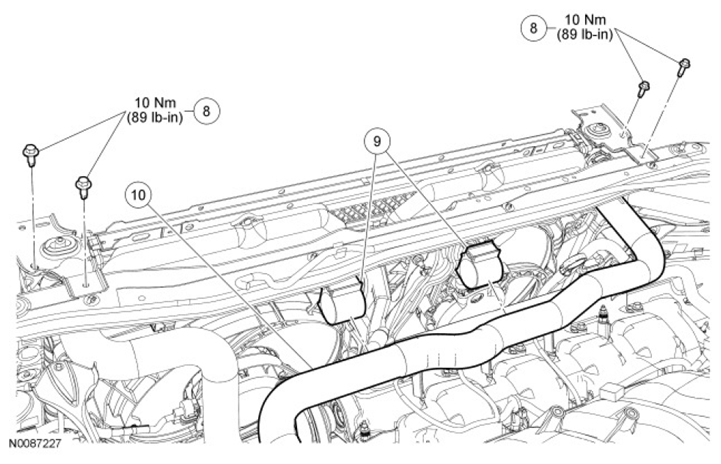

Fig 1: Upper Radiator Support Brackets Replacement Components With Torque Specifications
G07441256Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
8 W707399 Upper radiator support bracket bolts
9 - Upper radiator hose retaining clips (part of 8B274)
10 8B274 Upper radiator hose
