Lower Intake Manifold: Notes

WARNING: This page is about a different variant/trim than selected.

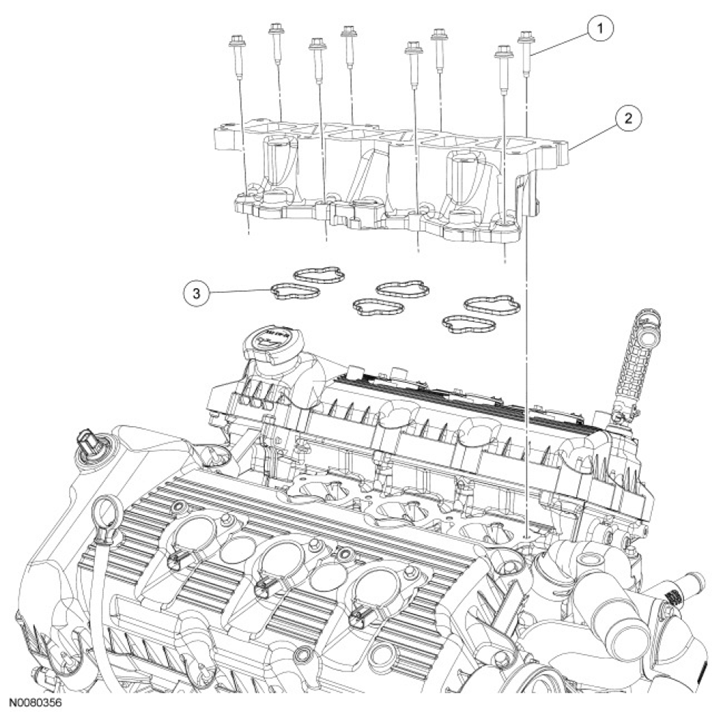

Fig 1: Identifying Lower Intake Manifold Components
G07441063Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W503279 Lower intake manifold bolt (8 required)
2 9K461 Lower intake manifold
3 9439 Lower intake manifold gasket (6 required)
