Lower Intake Manifold: Installation

WARNING: This page is about a different variant/trim than selected.
    NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.
    NOTE: Clean and inspect all sealing surfaces. Install new gaskets.
  1. Position the lower intake manifold and install the 8 bolts.
    • Tighten in the sequence shown in illustration to 10 Nm (89 lb-in).

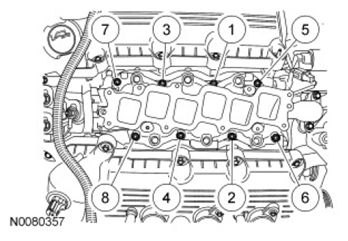

      Fig 1: Lower Intake Manifold Bolts Tightening Sequence
      G07441064Courtesy of FORD MOTOR CO.
  2. Install the fuel rail. For additional information, refer to FUEL CHARGING AND CONTROLS - 3.0L (4V) article.
  3. Connect the battery ground cable. For additional information, refer to BATTERY, BATTERY MOUNTING SYSTEM & BATTERY CABLES article.
