Flexplate and Rear Seal

WARNING: This page is about a different variant/trim than selected.

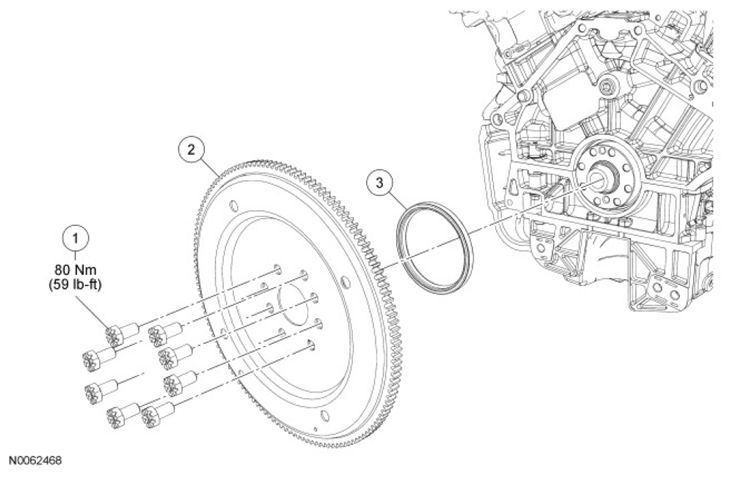

Fig 1: Flexplate And Crankshaft Rear Oil Seal Replacement Components With Torque Specifications
G07441077Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W701559 Flexplate bolt (8 required)
2 6375 Flexplate
3 6701 Crankshaft rear oil seal
  1. For additional information, refer to the appropriate procedures in this service information.
