Crankshaft Pulley and Front Seal

WARNING: This page is about a different variant/trim than selected.

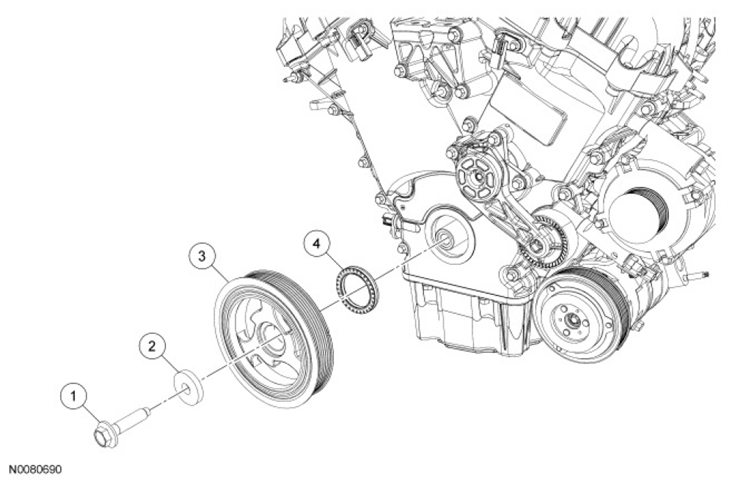

Fig 1: Identifying Crankshaft Pulley And Front Seal Components
G07441076Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W701512 Crankshaft pulley bolt
2 N806165 Washer
3 6316 Crankshaft pulley
4 6700 Crankshaft front seal
