Exhaust Manifold - RH: Notes
WARNING: This page is about a different variant/trim than selected.

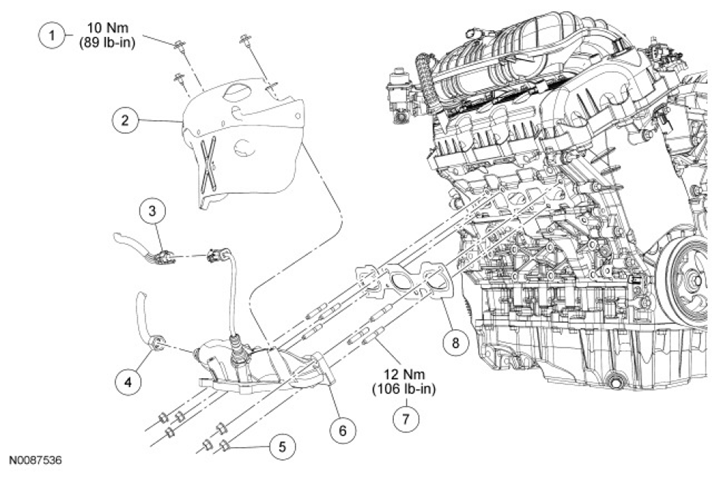

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W503921 | Exhaust manifold heat shield bolt (3 required) |
| 2 | 5E258 | Exhaust manifold heat shield |
| 3 | 14A464 | Heated Oxygen Sensor (HO2S) electrical connector (part of 12A581) |
| 4 | - | EGR tube nut (part of 9D477) |
| 5 | W701706 | Exhaust manifold nut (6 required) |
| 6 | 9430 | Exhaust manifold |
| 7 | W701732 | Exhaust manifold stud (6 required) |
| 8 | 9448 | Exhaust manifold gasket |
