Engine Support Insulators: Notes
WARNING: This page is about a different variant/trim than selected.

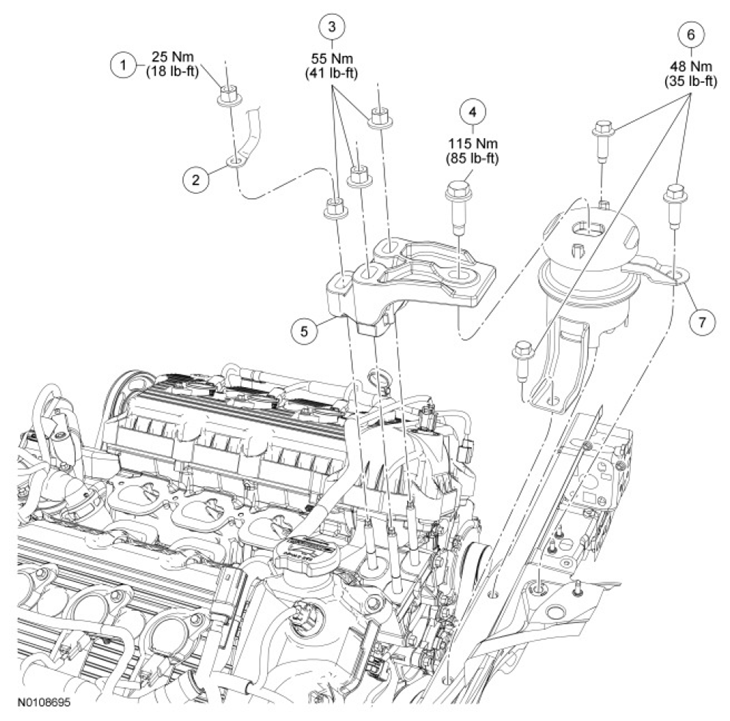

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | N621942 | Ground wire eyelet nut |
| 2 | - | Ground wire eyelet |
| 3 | N621942 | Engine support insulator bracket nuts (3 required) |
| 4 | W714723 | Engine support insulator bracket bolt |
| 5 | 6061 | Engine support insulator bracket |
| 6 | W500233 | Engine support insulator bolts (3 required) |
| 7 | 6068 | Engine support insulator |
