Oil Pump

WARNING: This page is about a different variant/trim than selected.

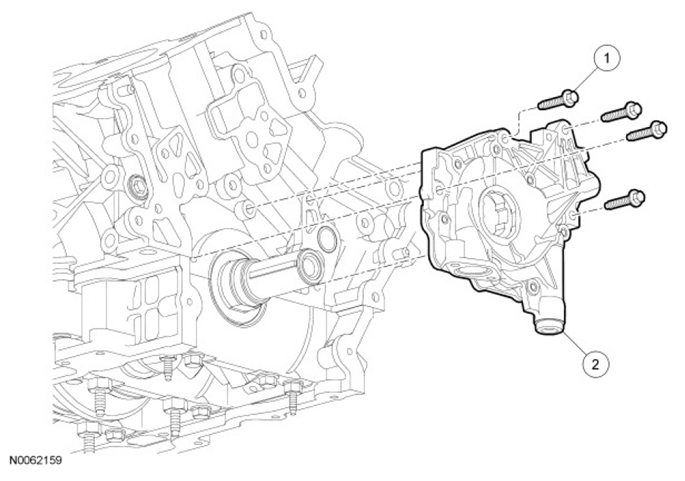

Fig 1: Exploded View Of Oil Pump Components
G07441245Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W500300 Oil pump bolt (4 required)
2 6621 Oil pump
  1. For additional information, refer to the appropriate procedures in this service information.
