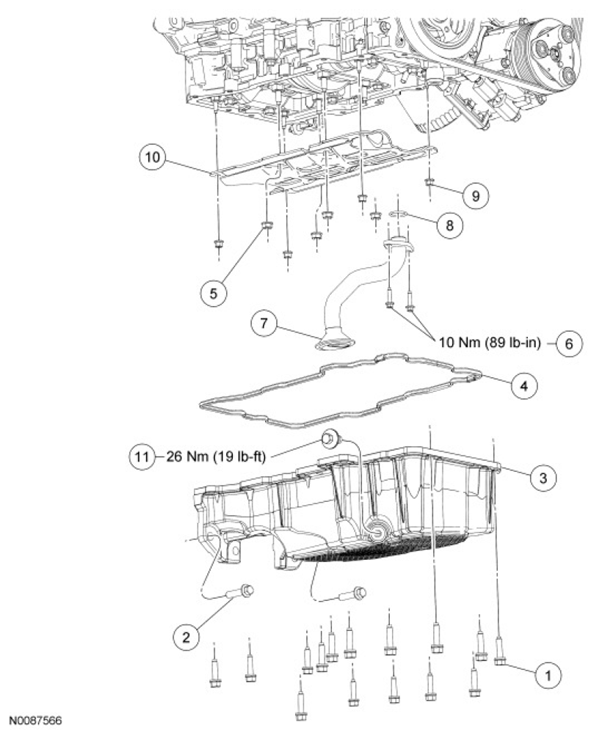

Oil Pan, Oil Pan Baffle and Oil Pump Screen and Pickup Tube
WARNING: This page is about a different variant/trim than selected.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W709678 | Oil pan-to-engine bolt (15 required) |
| 2 | W500120 | Oil pan-to-transaxle bolt (2 required) |
| 3 | 6675 | Oil pan |
| 4 | 6710 | Oil pan gasket |
| 5 | W701582 | Oil pan baffle nut (4 required) |
| 6 | W700005 | Oil pump screen and pickup tube bolts (2 required) |
| 7 | 6622 | Oil pump screen and pickup tube |
| 8 | 6625 | Oil pump screen and pickup tube O-ring seal |
| 9 | W701542 | Oil pan baffle nut (4 required) |
| 10 | 6687 | Oil pan baffle |
| 11 | 6730 | Oil pan drain plug |
