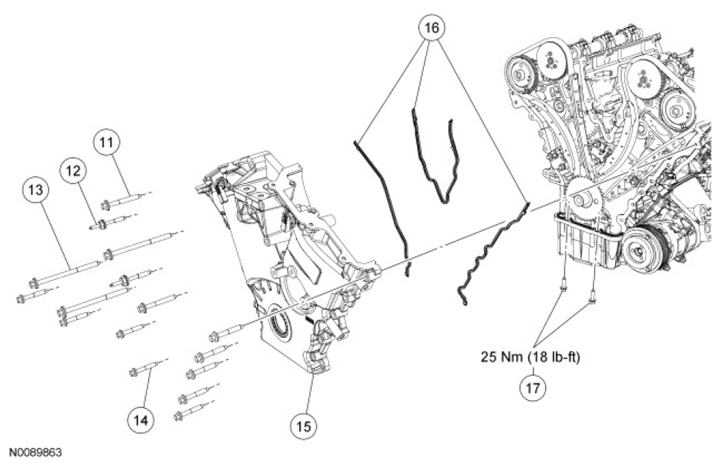

Engine Front Cover (View 3 of 3)
WARNING: This page is about a different variant/trim than selected.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 11 | W708222 | Engine front cover bolt (2 required) |
| 12 | W710030 | Engine front cover stud bolt (2 required) |
| 13 | W708221 | Engine front cover bolt (2 required) |
| 14 | W701525 | Engine front cover bolt (10 required) |
| 15 | 6019 | Engine front cover |
| 16 | 6D081 | Engine front cover gaskets |
| 17 | W709678 | Oil pan-to-front cover bolts |
