Section 9 (Engine Mechanical - 3.0L (4V))
>>
In-Vehicle Repair
>>
Cylinder Head - LH
>>
Upper Radiator Support Brackets
Upper Radiator Support Brackets
WARNING:
This page is about a different variant/trim than selected.

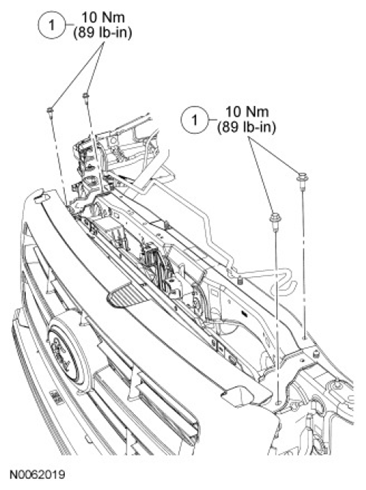

Fig 1: Upper Radiator Support Brackets Replacement Components With Torque Specifications
Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION
Item
Part Number
Description
1
W707399
Upper radiator support bracket bolts
Courtesy of FORD MOTOR CO.
