Cylinder Head - LH: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages, coolant passages or the oil pan may cause engine failure.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
Remove the lower intake manifold. For additional information, refer to LOWER INTAKE MANIFOLD in this service information.
Remove the LH catalytic converter. For additional information, refer to EXHAUST SYSTEM article.
Remove the coolant pump housing. For additional information, refer to ENGINE COOLING article.
Remove the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS in this service information.

NOTE: Failure to use the correct special tools, assembled as shown in the illustration, will result in damage to the coolant pump pulley and/or special tools.

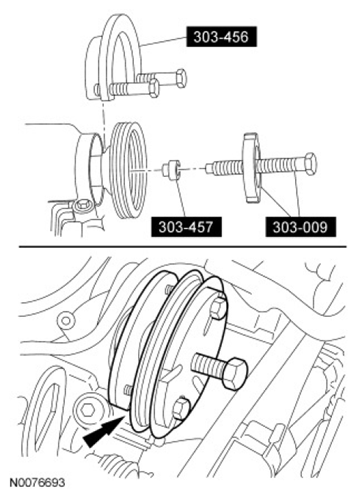

Fig 1: Removing Coolant Pump Pulley Using Special Tools

Courtesy of FORD MOTOR CO.

Using the Water Pump Pulley Plate, Water Pump Shaft Protector and the Crankshaft Vibration Damper Remover, remove the coolant pump pulley.

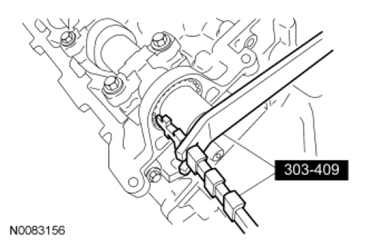

NOTE: Do not scratch the camshaft sealing surface while removing the camshaft oil seal. If scratched, camshaft oil seal leakage may occur.

Fig 2: Removing Camshaft Oil Seal Using The Oil Seal Remover

Courtesy of FORD MOTOR CO.

Using the Oil Seal Remover, remove and discard the camshaft oil seal.
Remove the 2 bolts and the camshaft oil seal retainer.
- Discard the press-in-place gasket.

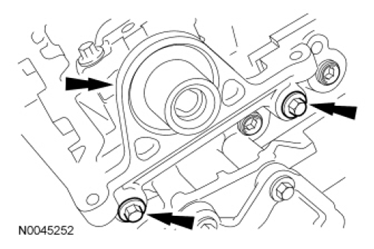

  Fig 3: Locating Camshaft Oil Seal Retainer With Bolts
  Courtesy of FORD MOTOR CO.

NOTE: The camshafts must be in the neutral position before removing the bearing caps or damage to the engine may occur.

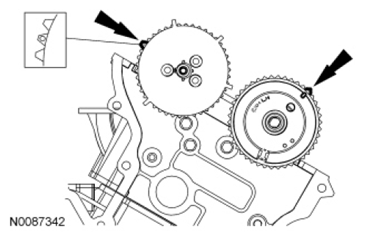

Fig 4: Identifying LH Camshafts Are In The Neutral Position

Courtesy of FORD MOTOR CO.

Verify the LH camshafts are in the neutral position.

NOTE: Do not allow the camshaft to rotate from the neutral position while removing the camshaft phaser and sprocket or damage to the engine may occur.

NOTE: Install a 3/8-in ratchet and extension into the D-slot on the rear of the intake camshaft to hold the camshaft in place for removal of the camshaft phaser and sprocket bolts.

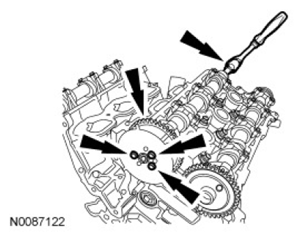

Fig 5: Remove/Install LH Camshaft Phaser And Sprocket Bolt

Courtesy of FORD MOTOR CO.

Remove the 3 bolts and the LH camshaft phaser and sprocket.

NOTE: Cylinder head camshaft bearing caps must be assembled in their original positions. Some engines have factory markings on the camshaft bearing caps (as shown in illustration). Engines that do not have the factory markings must be marked for correct position and orientation prior to removal. Failure to install the camshaft bearing caps in their original positions may result in severe engine damage.

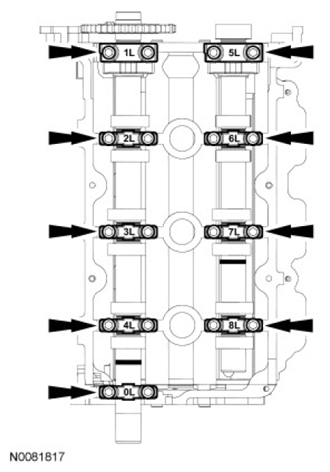

Fig 6: Locating Camshaft Bearing Cap Position And Orientation

Courtesy of FORD MOTOR CO.

If necessary, mark the camshaft bearing cap position and orientation as shown in the illustration.

NOTE: After loosening the camshaft bearing cap bolts, remove the camshaft bearing thrust caps (1L and 5L) first, or damage to the thrust caps may occur.

NOTE: Make sure the camshaft bearing caps are marked as instructed in the previous step.

Loosen the bolts evenly in the sequence shown in illustration.
1. Remove the camshaft bearing thrust caps (1L and 5L).
2. Remove the remaining camshaft bearing caps.
3. Remove the camshafts from the cylinder head.

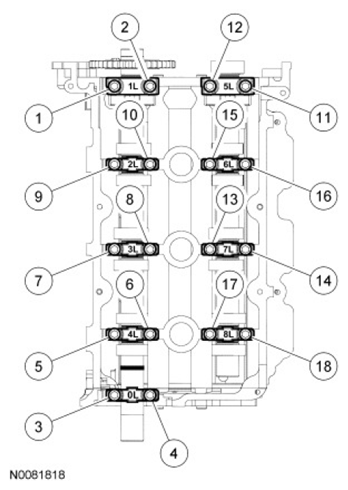

  Fig 7: Identifying Camshaft Bearing Cap Bolts Removing Sequence
  Courtesy of FORD MOTOR CO.

NOTE: The camshaft roller followers must be installed in their original positions. If not reassembled in their original positions, severe engine damage may occur.

Remove the camshaft roller followers.

NOTE: The hydraulic lash adjusters must be installed in their original positions. If not reassembled in their original positions, severe engine damage may occur.

Remove the hydraulic lash adjusters.
Remove the 4 upper radiator support bracket bolts.
Remove the oil level indicator.
Remove the stud bolt and then remove the oil level indicator tube by guiding it between the radiator support and the cooling fan.
- Remove and discard the O-ring seal.

NOTE: New cylinder head bolts must be installed. They are a torque-to-yield design and cannot be reused.

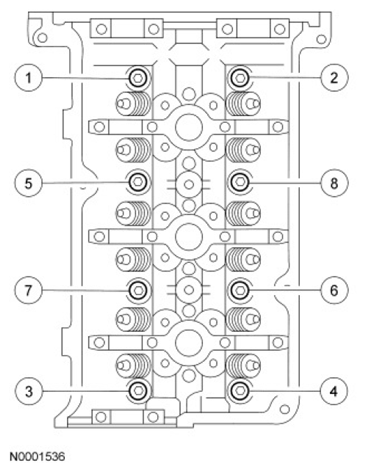

Fig 8: Identifying Cylinder Head Bolts Removing Sequence

Courtesy of FORD MOTOR CO.

Remove the bolts in the sequence shown in illustration.

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

Clean the cylinder head gasket surfaces with a plastic scraping tool and metal surface prep.
Support the cylinder head on a bench with the head gasket side up. Check the cylinder head distortion and the cylinder block distortion. For additional information, refer to ENGINE MECHANICAL SYSTEM - GENERAL INFORMATION article.
