Crankshaft Rear Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
  2. Remove the flexplate. For additional information, refer to FLEXPLATE  in this service information.
  3. Using the Slide Hammer and the Crankshaft Rear Oil Seal Remover, remove and discard the crankshaft rear oil seal.

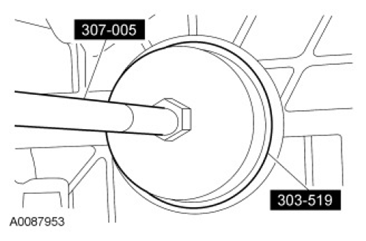

    Fig 1: Removing Crankshaft Rear Oil Seal Using The Slide Hammer And The Crankshaft Rear Oil Seal Remover
    G07441092Courtesy of FORD MOTOR CO.
