Crankshaft Front Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
  2. Remove the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY  in this service information.
  3. Using the Oil Seal Remover, remove and discard the crankshaft front seal.

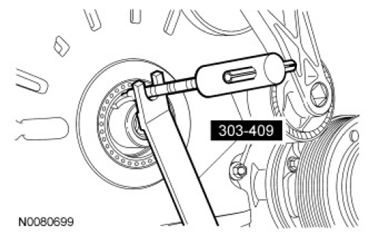

    Fig 1: Removing Crankshaft Front Seal Using The Oil Seal Remover
    G07441086Courtesy of FORD MOTOR CO.
