Crankshaft Front Seal: Installation

WARNING: This page is about a different variant/trim than selected.
    NOTE: Clean all sealing surfaces with metal surface prep.
  1. Apply clean engine oil to the seal lip and seal bore before installing the seal.
  2. Using the Front Cover Oil Seal Installer and the Crankshaft Vibration Damper Installer, install a new crankshaft front seal.

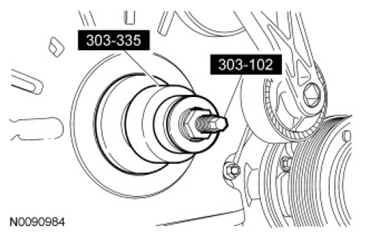

    Fig 1: Installing Crankshaft Front Seal Using The Front Cover Oil Seal Installer And The Crankshaft Vibration Damper Installer
    G07441087Courtesy of FORD MOTOR CO.
  3. Install the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY  in this service information.
