Removal and Installation

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
  2. Remove the LH and RH valve covers. For additional information, refer to VALVE COVER - LH  and VALVE COVER - RH  in this service information.
  3. Remove the LH and RH spark plugs. For additional information, refer to ENGINE IGNITION - 3.0L (4V) article.
  4. Remove the RH splash shield.
    • To install, tighten to 9 Nm (80 lb-in).
  5. Rotate the crankshaft until the camshaft lobe is pointing directly away from the roller follower.
  6. Using the Valve Spring Compressor, remove the roller followers.

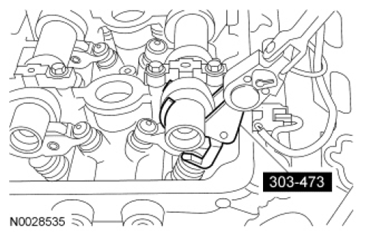

    Fig 1: Removing Roller Follower Using The Valve Spring Compressor
    G07441196Courtesy of FORD MOTOR CO.
    7. NOTE: Lubricate the camshaft followers with clean engine oil.
  7. To install, reverse the removal procedure.
