Cylinder Head: Disassembly

WARNING: This page is about a different variant/trim than selected.
NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components removed for locations. If not reassembled in their original positions, severe engine damage may occur.
  1. Using the Valve Spring Compressors, remove the keys, retainer and spring.

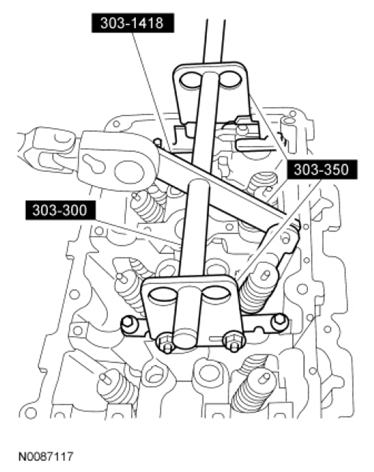

    Fig 1: Remove/Install Keys, Retainer And Spring Using The Valve Spring Compressors
    G07441439Courtesy of FORD MOTOR CO.
  2. Remove the valve from the cylinder head.
  3. Remove the valve stem seal.
