Cylinder Head: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Using the Valve Stem Oil Seal Installer, install the valve stem seal.

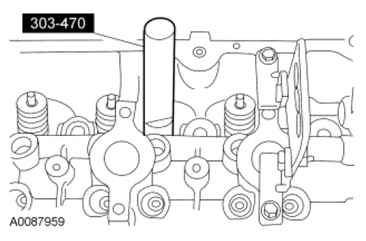

    Fig 1: Installing Valve Stem Seal Using The Valve Stem Oil Seal Installer
    G07441440Courtesy of FORD MOTOR CO.
  2. Install the valve.
  3. Using the Valve Spring Compressors, install the valve spring, retainer and keys.

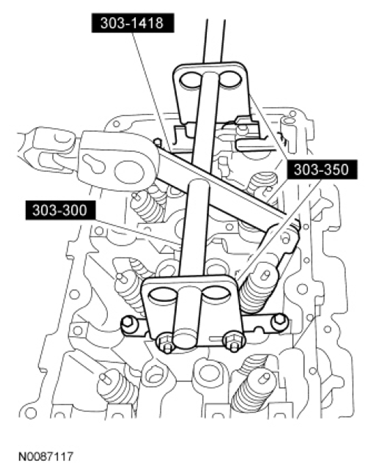

    Fig 2: Remove/Install Keys, Retainer And Spring Using The Valve Spring Compressors
    G07441441Courtesy of FORD MOTOR CO.
