Selector Lever Bezel: Removal

WARNING: This page is about a different variant/trim than selected.

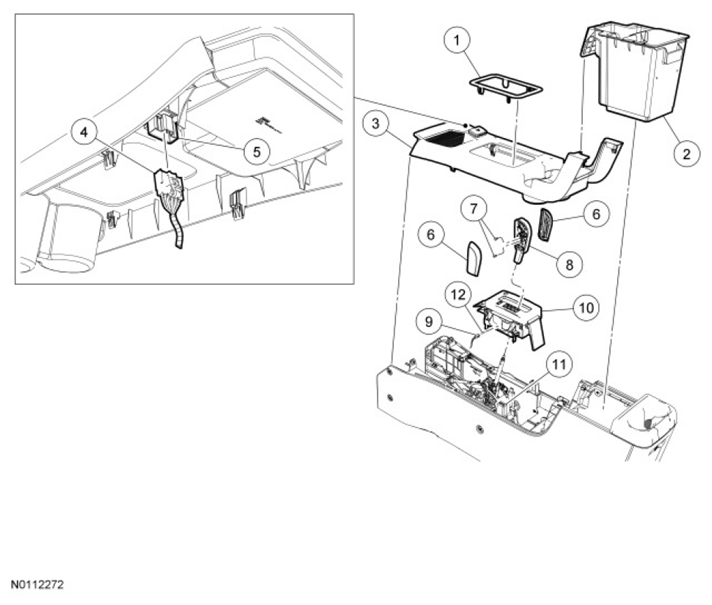

Fig 1: Identifying Selector Lever Bezel Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	78061A16	Trim ring
2	78044H06	Center console compartment tray
3	78045A76	Center console finish panel
4	14A464	Power outlet electrical connector
5	19G247	Power outlet
6	-	Selector lever knob trim covers (part of 7L010)
7	-	Selector lever knob screws (part of 7L010)
8	7L010	Selector lever knob
9	-	Selector lever bezel light socket (part of 7C453)
10	7E034	Selector lever bezel
11	7K004	Selector lever assembly
12	13466	Selector lever bezel light bulb

Place the selector lever in the D position.

Fig 2: Locating Selector Lever In D Position
Courtesy of FORD MOTOR CO.
Gently pry up to remove the selector lever trim ring.

Fig 3: Locating Selector Lever Trim Ring
Courtesy of FORD MOTOR CO.
Lift the center console lid and remove the center console compartment tray.

Fig 4: Locating Center Console Compartment Tray
Courtesy of FORD MOTOR CO.
Remove the top finish panel from the center console.

Fig 5: Locating Top Finish Panel
Courtesy of FORD MOTOR CO.
Disconnect the power outlet electrical connector.

Fig 6: Locating Power Outlet Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the selector lever knob trim covers by carefully prying out on the bottom front corners and then pry out on the top front corner and remove the covers.

Fig 7: Remove/Install Selector Lever Knob Trim Covers
Courtesy of FORD MOTOR CO.
Remove the 2 selector lever knob screws and remove the selector lever knob.

Fig 8: Locating Selector Lever Knob Screws
Courtesy of FORD MOTOR CO.
Remove the selector lever bezel light socket from the selector lever bezel.
- If necessary, remove the light bulb.
Fig 9: Locating Selector Lever Bezel Light
Courtesy of FORD MOTOR CO.

NOTE: Selector lever removed for clarity.

Fig 10: Locating Selector Lever Bezel Tabs

Courtesy of FORD MOTOR CO.
