Selector Lever: Notes
WARNING: This page is about a different variant/trim than selected.

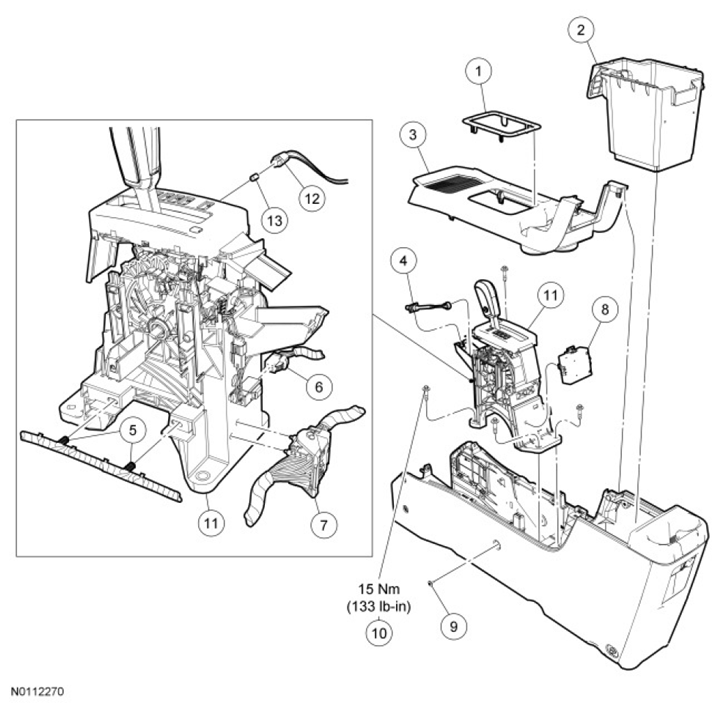

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 78061A16 | Trim ring |
| 2 | 78044H06 | Center console compartment tray |
| 3 | 78045A76 | Center console finish panel |
| 4 | 7E395 | Selector lever cable |
| 5 | 13A506 | Wiring harness retainers |
| 6 | 14489 | Selector lever electrical connector |
| 7 | 14A459 | Vehicle wiring harness connector |
| 8 | 070704 | All-Wheel Drive (AWD) module (AWD vehicles only) |
| 9 | W705796 | Center console screw (2 required) |
| 10 | W713196 | Selector lever assembly bolt (4 required) |
| 11 | 7K004 | Selector lever assembly |
| 12 | - | Selector lever bezel light socket |
| 13 | 13466 | Selector lever bezel light bulb |
