Removal and Installation

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
  2. Disconnect the Heated Oxygen Sensor (HO2S) electrical connector.
    3. NOTE: If necessary, lubricate the sensor threads with penetrating and lock lubricant to assist in removal.
  3. Using the Exhaust Gas Oxygen Sensor Socket, remove the HO2S.
    • Calculate the correct torque wrench setting for the following torque. Refer to the Torque Wrench Adapter Formulas in the illustration.
      Fig 1: Identifying Torque Wrench Adapter Formulas
      G00468730Courtesy of FORD MOTOR CO.
    • To install, tighten to 48 Nm (35 lb-ft).

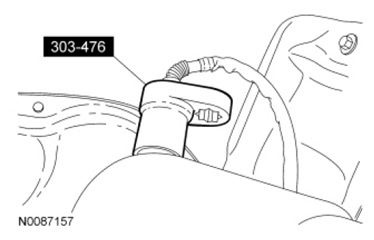

      Fig 2: Removing Heated Oxygen Sensor Using Exhaust Gas Oxygen Sensor Socket
      G07439929Courtesy of FORD MOTOR CO.
    4. NOTE: Apply a light coat of anti-seize lubricant to the threads of the HO2S  .
  4. To install, reverse the removal procedure.
