Differential Seals - LH: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
  2. Turn the ignition to the OFF position.
  3. Remove the retainers and remove the LH splash shield.
    Fig 1: Locating Retainers For LH Splash Shield
    G07442243Courtesy of FORD MOTOR CO.
  4. Remove the drain plug and drain the transmission fluid.
    Fig 2: Locating Drain Plug
    G07442244Courtesy of FORD MOTOR CO.
  5. Remove the LH halfshaft. For additional information, refer to FRONT DRIVE HALFSHAFTS article.
  6. Using the Slide Hammer and Input Shaft Oil Seal Remover, remove and discard the LH differential seal.

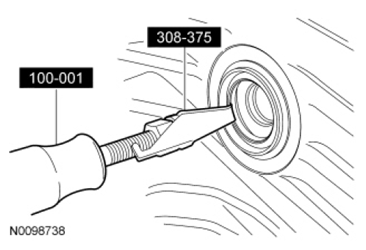

    Fig 3: Removing LH Differential Seal Using Slide Hammer And Input Shaft Oil Seal Remover
    G07442245Courtesy of FORD MOTOR CO.
