Turbine Shaft Speed (TSS) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
  2. Remove the retainers and the LH splash shield.

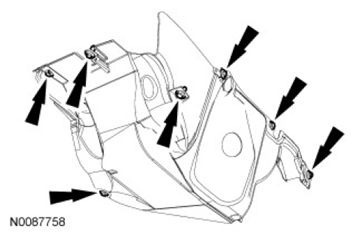

    Fig 1: Locating LH Splash Shield Retainers
    G07444033Courtesy of FORD MOTOR CO.
  3. Disconnect the Turbine Shaft Speed (TSS) electrical connector, remove the bolt and the TSS  sensor.
    Fig 2: Remove/Install Turbine Shaft Speed Electrical Connector And Bolt
    G07444034Courtesy of FORD MOTOR CO.
