Turbine Shaft Speed (TSS) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the TSS  sensor, the bolt and connect the TSS  electrical connector.
    • Tighten to 10 Nm (89 lb-in).
      Fig 1: Remove/Install Turbine Shaft Speed Electrical Connector And Bolt
      G07444035Courtesy of FORD MOTOR CO.
  2. Install the LH splash shield and the retainers.

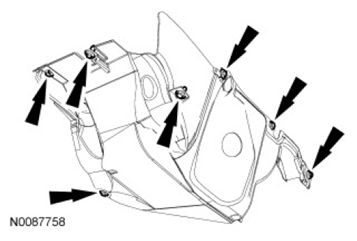

    Fig 2: Locating LH Splash Shield Retainers
    G07444036Courtesy of FORD MOTOR CO.
  3. Fill the transaxle with clean transmission fluid.
  4. Using the scan tool with the engine running, check and make sure that the transmission is at normal operating temperature 85-93°C (185-200°F). Check and adjust the transmission fluid level and check for any leaks. If transmission fluid is needed, add transmission fluid in increments of 0.24L (0.5 pt) until the correct level is achieved.
