Transaxle Support Insulator - Lower, Rear: Notes
WARNING: This page is about a different variant/trim than selected.

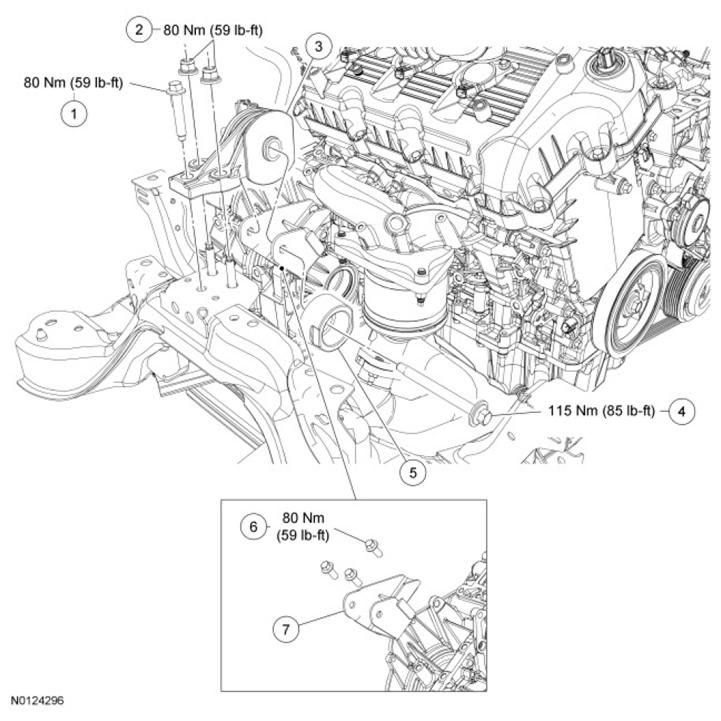

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W500743 | Lower support insulator bolt |
| 2 | N807144 | Lower support insulator nut (2 required) |
| 3 | 6068 | Lower support insulator |
| 4 | W710173 | Lower support insulator through bolt |
| 5 | 5G209 | Mass damper (All-Wheel Drive (AWD) only) |
| 6 | W500042 | Lower support insulator bracket bolt (3 required) |
| 7 | 6A023 | Lower support insulator bracket |
