Transaxle Support Insulator - Lower, Front: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
  2. Remove the LH splash shield.

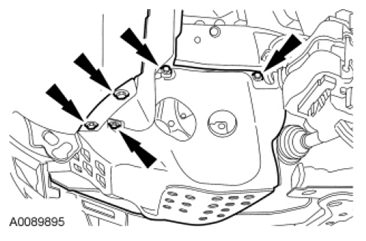

    Fig 1: Locating LH Splash Shield Retainers
    G07444075Courtesy of FORD MOTOR CO.
  3. Remove the 4 bolts and the rear cross brace.

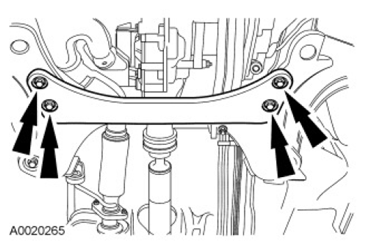

    Fig 2: Remove/Install Rear Cross Brace Bolts
    G07444076Courtesy of FORD MOTOR CO.
  4. Remove the lower front insulator through bolt and the 2 cross brace bolts.

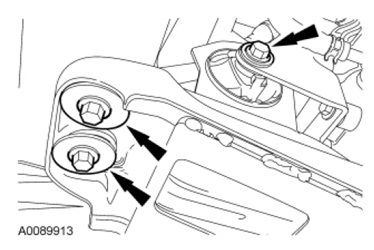

    Fig 3: View Of Lower Front Insulator Through Bolt And Cross Brace Bolts
    G07444077Courtesy of FORD MOTOR CO.
  5. Remove the cross brace nut and remove the brace.

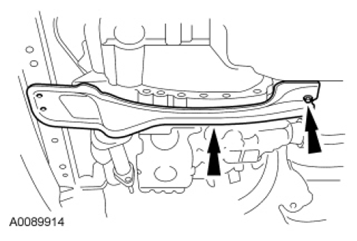

    Fig 4: View Of Cross Brace And Nut
    G07444078Courtesy of FORD MOTOR CO.
