Transaxle Support Insulator - Lower, Front: Notes
WARNING: This page is about a different variant/trim than selected.

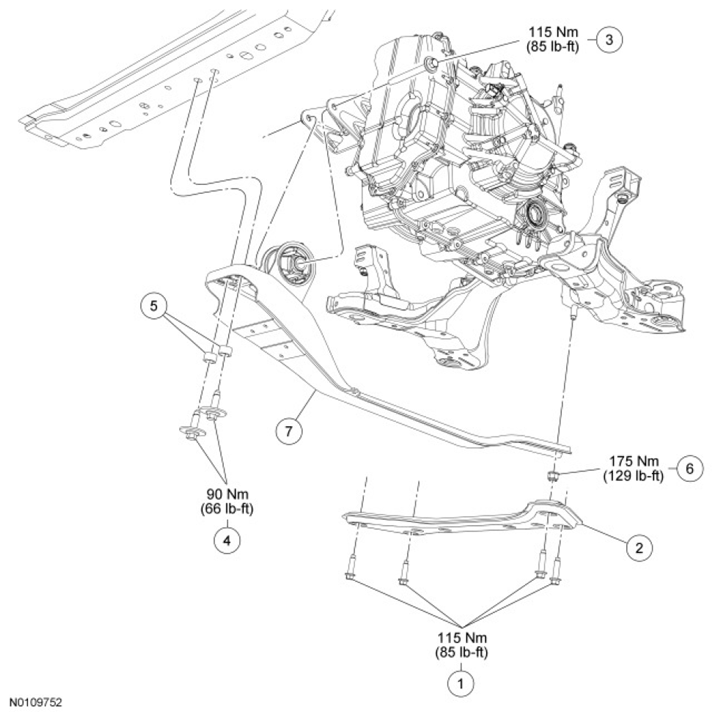

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W500644 | Rear cross brace bolts |
| 2 | - | Cross brace |
| 3 | W711268 | Lower front insulator through bolt |
| 4 | W713325 | Cross brace bolts |
| 5 | 6B095 | Lower front insulator-to-core support spacers |
| 6 | W710553-S440 | Cross brace nut |
| 7 | 6P094 | Engine support cross brace and insulator assembly |
