Transaxle Filler Tube: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transaxle vent hose from the transaxle filler tube.

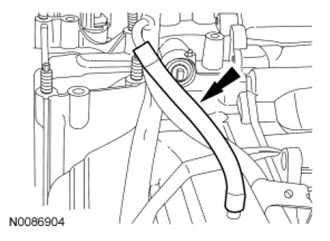

    Fig 1: Locating Transaxle Filler Tube
    G07443800Courtesy of FORD MOTOR CO.
  2. Remove the transmission fluid level indicator.

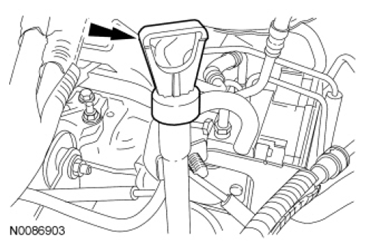

    Fig 2: Locating Transmission Fluid Level Indicator
    G07443801Courtesy of FORD MOTOR CO.
  3. Remove the selector lever cable from the transaxle filler tube bracket.

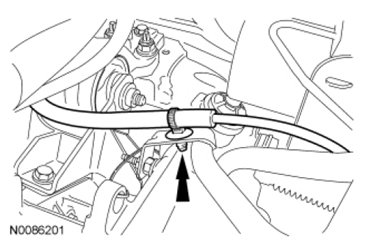

    Fig 3: Locating Transaxle Filler Tube Bracket
    G07443802Courtesy of FORD MOTOR CO.
  4. Remove the transaxle filler tube nut.
    • To install, tighten to 11 Nm (97 lb-in).

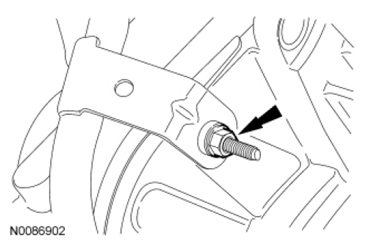

      Fig 4: Locating Transaxle Filler Tube Nut
      G07443803Courtesy of FORD MOTOR CO.
  5. Pull and rotate the transaxle filler tube clockwise and remove the transaxle filler tube.
    Fig 5: Rotating Transaxle Filler Tube
    G07443804Courtesy of FORD MOTOR CO.
