Transaxle Filler Tube: Notes

WARNING: This page is about a different variant/trim than selected.

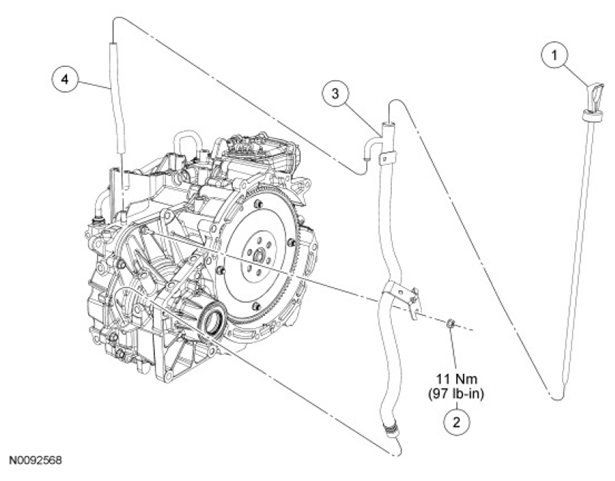

Fig 1: Transaxle Filler Tube Replacement Components With Torque Specifications
G07443799Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 7A020 Transmission fluid level indicator
2 W520101 Transaxle filler tube nut
3 7A228 Transaxle filler tube
4 - Transaxle vent hose
