In-Vehicle Repair: Solenoids: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Inspect the solenoid(s) for damage.

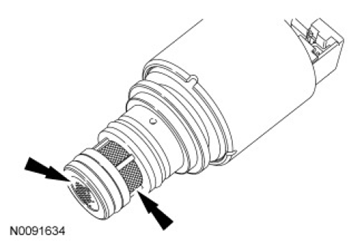

    Fig 1: Inspecting Solenoid(s) For Damage
    G07443924Courtesy of FORD MOTOR CO.
  2. If a new solenoid is not being installed, install the solenoid(s) into the bore from which it was removed.
  3. If installing a new Variable Force Solenoid (VFS), determine the base part number of the solenoid(s). The Torque Converter Clutch (TCC) solenoid, Shift Solenoid A (SSA) and Shift Solenoid C (SSC) are all normally low pressure solenoids. The Line Pressure Control (LPC) solenoid, Shift Solenoid B (SSB) and Shift Solenoid D (SSD) are all normally high pressure solenoids. Shift Solenoid E (SSE) is not a VFS  ; it is an ON/OFF solenoid.

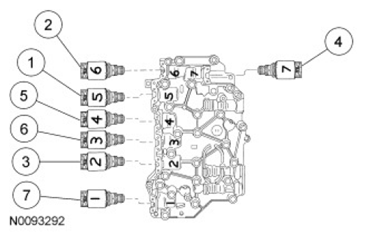

    Fig 2: Identifying Solenoids Components
    G07443925Courtesy of FORD MOTOR CO.
    ITEM DESCRIPTION CHART

    Item Part Number Description
    1 7G136 SSA  (normally low)
    2 7G383 SSB  (normally high)
    3 7G136 SSC  (normally low)
    4 7G383 SSD  (normally high)
    5 7G484 SSE  (normally closed [OFF])
    6 7G136 TCC  solenoid (normally low)
    7 7G383 LPC  solenoid (normally high)
  4. If installing a new LPC  solenoid, SSB  or SSD  , note the color of the electrical terminal area of the solenoid. The color will be blue or green and the solenoid can only be replaced with the same color solenoid. If a new solenoid with that color is not available, install a new solenoid body, refer to SOLENOID BODY ASSEMBLY  in this service information.
    Fig 3: Locating Electrical Terminal Area Of Solenoid
    G07443926Courtesy of FORD MOTOR CO.
  5. Determine the part number suffix by checking the solenoid service band number etched on the side of the solenoid. The band number is the third digit on the side of the solenoid and will be a 1, 2, 3, 4 or 5. Use the following table to determine the part number suffix and match the new solenoid base part number and suffix with the old solenoid. Install the solenoid in the solenoid body.
    PIN NUMBER REFERENCE CHART

    Solenoid Band Number Part Number Suffix
    1 B
    2 C
    3 D
    4 E
    5 F
    Fig 4: Identifying Solenoid Band Number
    G07443927Courtesy of FORD MOTOR CO.
  6. Install the solenoid retaining pin(s).

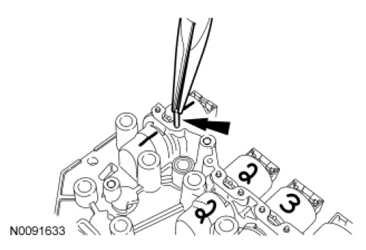

    Fig 5: Remove/Install Solenoid Retaining Pin
    G07443928Courtesy of FORD MOTOR CO.

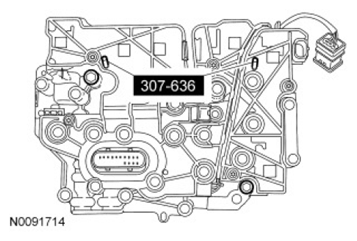

  7. Install the Valve Body Alignment Pins in the solenoid body to align the lead frame for installation.
    Fig 6: View Of Valve Body Alignment Pins In Solenoid Body
    G07443929Courtesy of FORD MOTOR CO.
  8. Position the leadframe on the Valve Body Alignment Pins and carefully install the leadframe by pushing straight down into the solenoids.
  9. Remove the Valve Body Alignment Pins.
  10. Install the 5 leadframe screws.

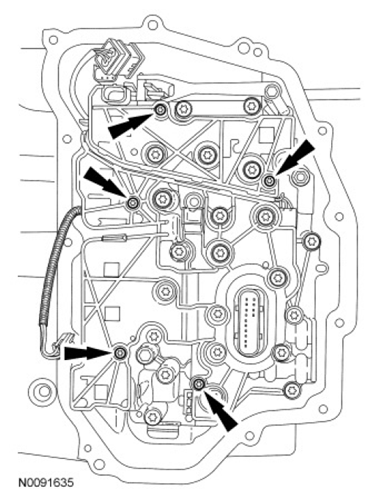

    Fig 7: Locating Leadframe Screws
    G07443930Courtesy of FORD MOTOR CO.
  11. Connect the OSS  sensor electrical connector.

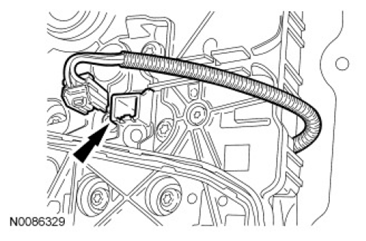

    Fig 8: Locating Output Shaft Speed Sensor Electrical Connector
    G07443931Courtesy of FORD MOTOR CO.
  12. Connect the TR  sensor electrical connector.

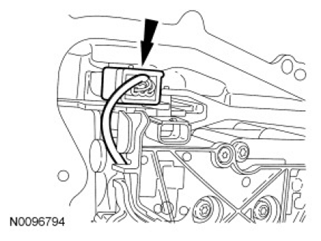

    Fig 9: Locating Transmission Range Sensor Electrical Connector
    G07443932Courtesy of FORD MOTOR CO.
  13. Install the main control cover grommet.

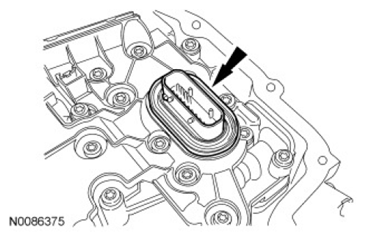

    Fig 10: Locating Main Control Cover Grommet
    G07443933Courtesy of FORD MOTOR CO.
  14. Clean the main control cover sealing surface and inspect for damage.

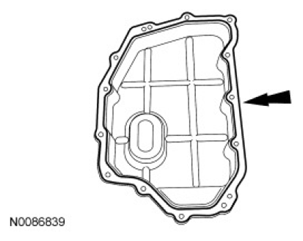

    Fig 11: Locating Sealant Applying Area On Main Control Cover
    G07443934Courtesy of FORD MOTOR CO.
  15. Apply silicone to the main control sealing surface of the transaxle case.

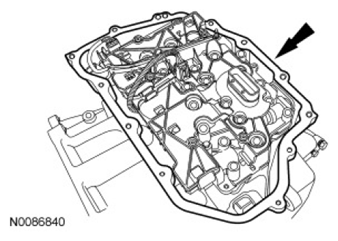

    Fig 12: View Of Sealant Applying Area On Transaxle Case
    G07443935Courtesy of FORD MOTOR CO.
  16. Position the main control cover in place.

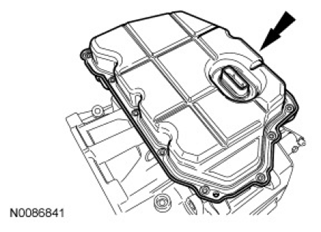

    Fig 13: View Of Main Control Cover
    G07443936Courtesy of FORD MOTOR CO.
    17. NOTE: Inspect the main control cover grommet to make sure that the seals is on the inside of the main control cover. Transmission fluid leak will occur.
    NOTE: Install the stud bolts in the locations noted during disassembly.
  17. Tighten the 8 main control cover bolts and 5 stud bolts.
    • Tighten to 12 Nm (106 lb-in).

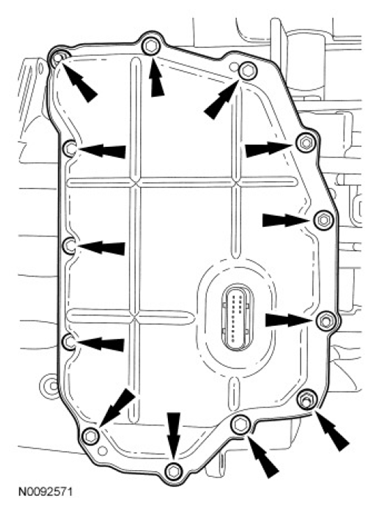

      Fig 14: Remove/Install Main Control Cover Bolts And Stud Bolts
      G07443937Courtesy of FORD MOTOR CO.
  18. Position the transmission fluid cooler tube bracket and transmission fluid cooler tube assembly in place and install the 2 nuts.
    • Tighten to 9 Nm (80 lb-in).

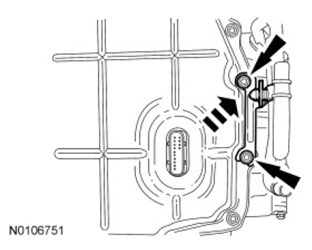

      Fig 15: View Of Transmission Fluid Cooler Tube Bracket And Tubes With Nuts
      G07443938Courtesy of FORD MOTOR CO.

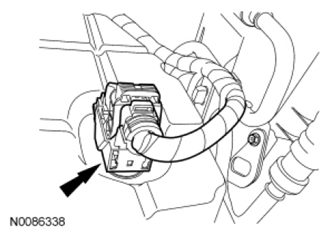

  19. Connect the transaxle vehicle harness electrical connector.
    Fig 16: Locating Transaxle Vehicle Harness Electrical Connector
    G07443939Courtesy of FORD MOTOR CO.
  20. Connect the transaxle electrical wiring harness retainers to the transmission fluid pan stud bolts.
    Fig 17: Locating Transaxle Electrical Wiring Harness Retainers
    G07443940Courtesy of FORD MOTOR CO.
  21. Install the LH splash shield and the retainers.

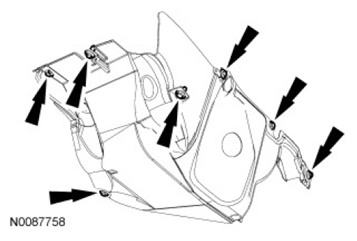

    Fig 18: Locating LH Splash Shield Retainers
    G07443941Courtesy of FORD MOTOR CO.
  22. Fill the transaxle with clean transmission fluid.
  23. Using the scan tool with the engine running, check and make sure that the transmission is at normal operating temperature 85-93°C (185-200°F). Check and adjust the transmission fluid level and check for any leaks. If transmission fluid is needed, add transmission fluid in increments of 0.24L (0.5 pt) until the correct level is achieved.
