Solenoid Body Leadframe: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the Valve Body Alignment Pins in the solenoid body to align the lead frame for installation.
    Fig 1: View Of Valve Body Alignment Pins In Solenoid Body
    G07443896Courtesy of FORD MOTOR CO.
  2. Position the leadframe on the Valve Body Alignment Pins and carefully install the leadframe by pushing straight down into the solenoids.
  3. Remove the Valve Body Alignment Pins.

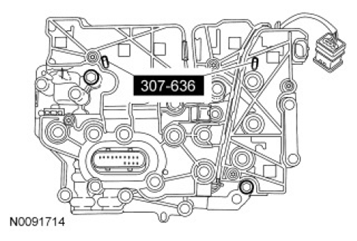

    Fig 2: View Of Valve Body Alignment Pins In Solenoid Body
    G07443897Courtesy of FORD MOTOR CO.
  4. Install the 5 leadframe screws.

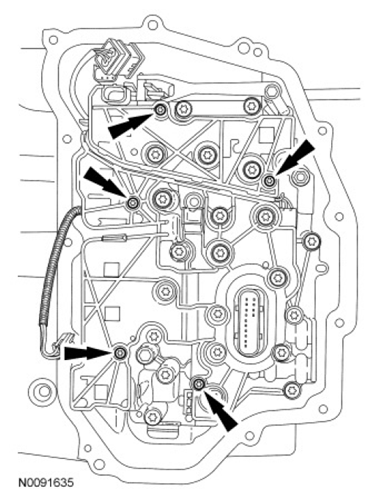

    Fig 3: Locating Leadframe Screws
    G07443898Courtesy of FORD MOTOR CO.
  5. Connect the OSS  sensor electrical connector.

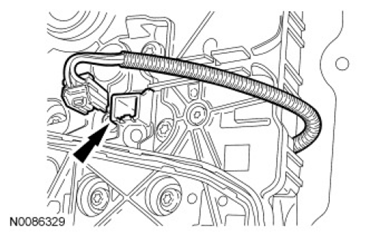

    Fig 4: Locating Output Shaft Speed Sensor Electrical Connector
    G07443899Courtesy of FORD MOTOR CO.
  6. Connect the TR  sensor electrical connector.

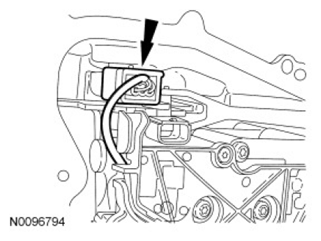

    Fig 5: Locating Transmission Range Sensor Electrical Connector
    G07443900Courtesy of FORD MOTOR CO.
  7. Install the main control cover grommet.

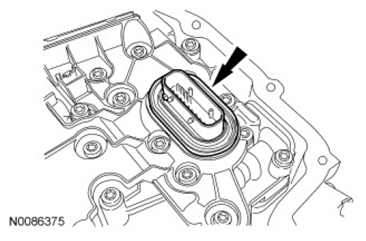

    Fig 6: Locating Main Control Cover Grommet
    G07443901Courtesy of FORD MOTOR CO.
  8. Clean the main control cover sealing surface and inspect for damage.

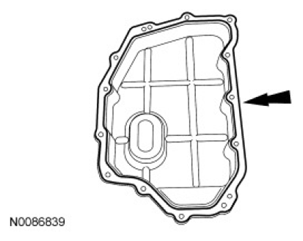

    Fig 7: Locating Sealant Applying Area On Main Control Cover
    G07443902Courtesy of FORD MOTOR CO.
  9. Apply silicone to the main control sealing surface of the transaxle case.

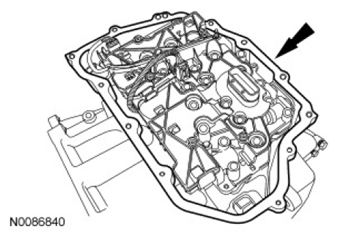

    Fig 8: View Of Sealant Applying Area On Transaxle Case
    G07443903Courtesy of FORD MOTOR CO.
  10. Position the main control cover in place.

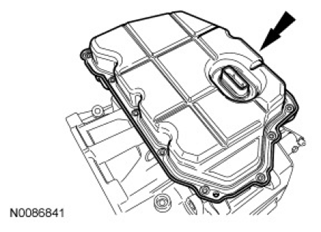

    Fig 9: View Of Main Control Cover
    G07443904Courtesy of FORD MOTOR CO.
    11. NOTE: Inspect the main control cover grommet to make sure that the seal is on the inside of the main control cover. Transmission fluid leak will occur.
    NOTE: Install the stud bolts in the locations noted during disassembly.
  11. Tighten the 8 main control cover bolts and 5 stud bolts.
    • Tighten to 12 Nm (106 lb-in).

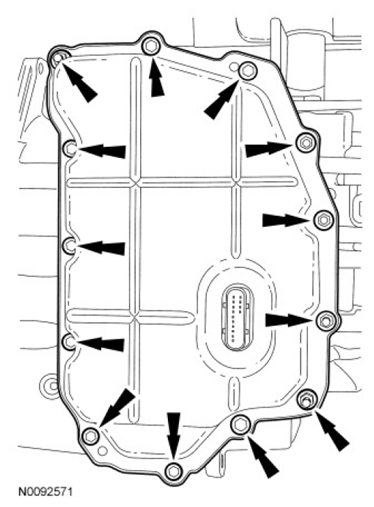

      Fig 10: Remove/Install Main Control Cover Bolts And Stud Bolts
      G07443905Courtesy of FORD MOTOR CO.
  12. Position the transmission fluid cooler tube bracket and transmission fluid cooler tube assembly in place and install the 2 nuts.
    • Tighten to 9 Nm (80 lb-in).

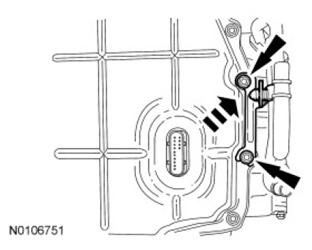

      Fig 11: View Of Transmission Fluid Cooler Tube Bracket And Tubes With Nuts
      G07443906Courtesy of FORD MOTOR CO.
  13. Connect the transaxle vehicle harness electrical connector.

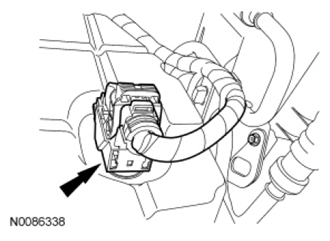

    Fig 12: Locating Transaxle Vehicle Harness Electrical Connector
    G07443907Courtesy of FORD MOTOR CO.
  14. Connect the transaxle electrical wiring harness retainers to the transmission fluid pan stud bolts.
    Fig 13: Locating Transaxle Electrical Wiring Harness Retainers
    G07443908Courtesy of FORD MOTOR CO.
  15. Install the LH splash shield and the retainers.

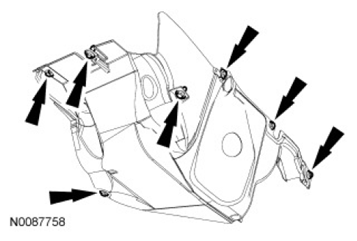

    Fig 14: Locating LH Splash Shield Retainers
    G07443909Courtesy of FORD MOTOR CO.
  16. Fill the transaxle with clean transmission fluid.
  17. Using the scan tool with the engine running, check and make sure that the transmission is at normal operating temperature 85-93°C (185-200°F). Check and adjust the transmission fluid level and check for any leaks. If transmission fluid is needed, add transmission fluid in increments of 0.24L (0.5 pt) until the correct level is achieved.
