Output Shaft Speed (OSS) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
  2. Remove the retainers and the LH splash shield.

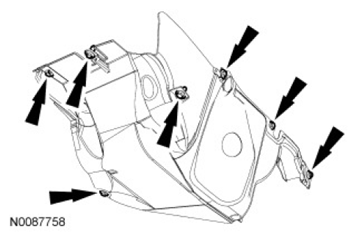

    Fig 1: Locating LH Splash Shield Retainers
    G07443973Courtesy of FORD MOTOR CO.
  3. Remove the transmission fluid drain plug and allow the transmission fluid to drain.
    Fig 2: Locating Transmission Fluid Drain Plug
    G07443974Courtesy of FORD MOTOR CO.
  4. Install the transmission fluid drain plug.
    • Tighten to 12 Nm (106 lb-in).

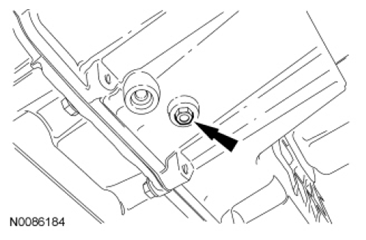

      Fig 3: Locating Transmission Fluid Drain Plug
      G07443975Courtesy of FORD MOTOR CO.
  5. Disconnect the transaxle vehicle harness electrical connector.

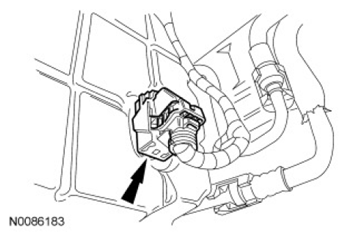

    Fig 4: View Of Transaxle Vehicle Harness Electrical Connector
    G07443976Courtesy of FORD MOTOR CO.
  6. Remove the transaxle electrical wiring harness retainers from the transmission fluid pan stud bolts.
    Fig 5: Locating Transaxle Electrical Wiring Harness Retainers
    G07443977Courtesy of FORD MOTOR CO.
  7. Remove the 2 nuts, pull the transmission fluid cooler tube bracket and tubes away from the transaxle and position it aside.

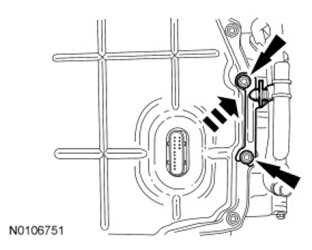

    Fig 6: View Of Transmission Fluid Cooler Tube Bracket And Tubes With Nuts
    G07443978Courtesy of FORD MOTOR CO.
    8. NOTE: Note the location of the stud bolts for assembly.

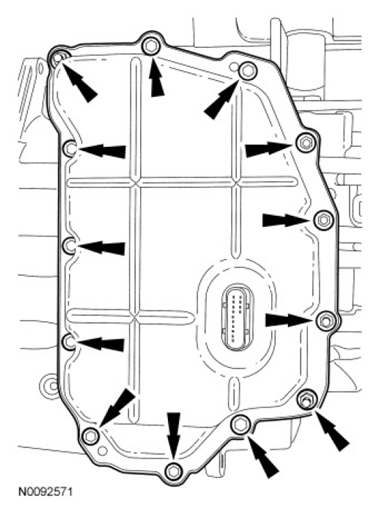

    Fig 7: Remove/Install Main Control Cover Bolts And Stud Bolts
    G07443979Courtesy of FORD MOTOR CO.
  8. Remove the 8 bolts, 5 stud bolts and the main control cover.
  9. Disconnect the Transmission Range (TR) sensor electrical connector.

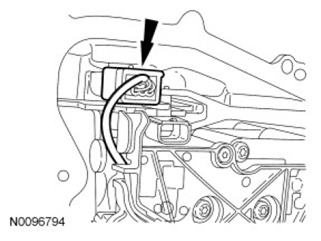

    Fig 8: Locating Transmission Range Sensor Electrical Connector
    G07443980Courtesy of FORD MOTOR CO.
  10. Disconnect the Output Shaft Speed (OSS) sensor electrical connector.

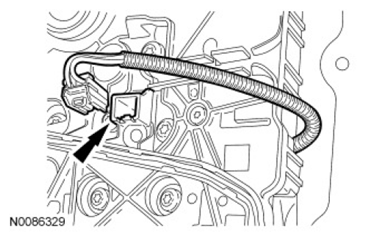

    Fig 9: Locating Output Shaft Speed Sensor Electrical Connector
    G07443981Courtesy of FORD MOTOR CO.
  11. Remove the main control-to-main control cover grommet.

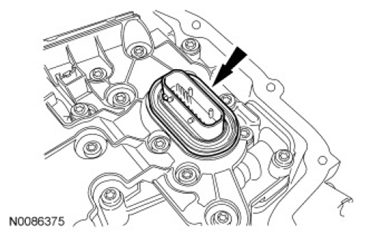

    Fig 10: Locating Main Control Cover Grommet
    G07443982Courtesy of FORD MOTOR CO.
    12. NOTE: The main control should be handled with care, damage to the main control may occur.
    NOTE: Note the location of the different length bolts for assembly.

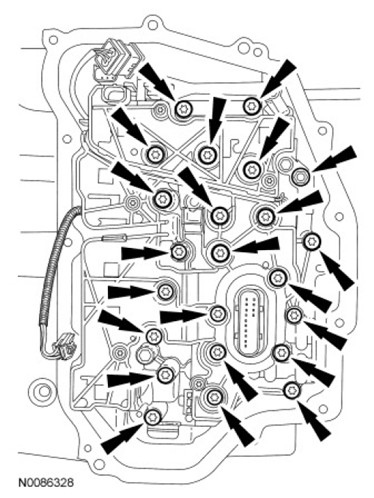

    Fig 11: View Of Main Control Bolts And Nut
    G07443983Courtesy of FORD MOTOR CO.
  12. Remove the nut, 22 bolts and the main control.
  13. Remove the main control-to-transaxle separator plate.

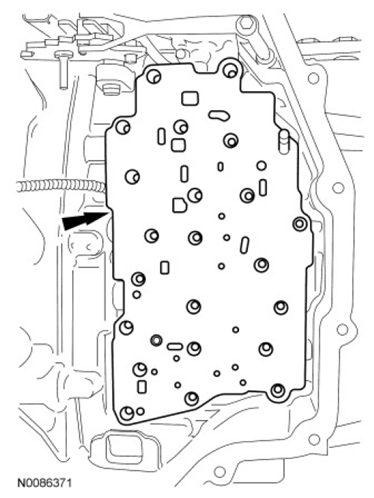

    Fig 12: View Of Main Control-To-Transaxle Case Separator Plate
    G07443984Courtesy of FORD MOTOR CO.
  14. Remove the bolt and the OSS  sensor.

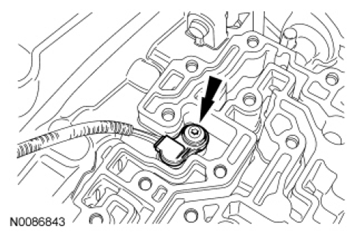

    Fig 13: Remove/Install OSS Sensor Bolt
    G07443985Courtesy of FORD MOTOR CO.
