Output Shaft Speed (OSS) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

Install the OSS sensor and the bolt.
- Tighten to 10 Nm (89 lb-in).

  Fig 1: Remove/Install OSS Sensor Bolt
  Courtesy of FORD MOTOR CO.

NOTE: If cleaning the main control assembly or inspecting the valves, refer to MAIN CONTROL VALVE BODY in this service information. If installing a new main control assembly, continue with this procedure.

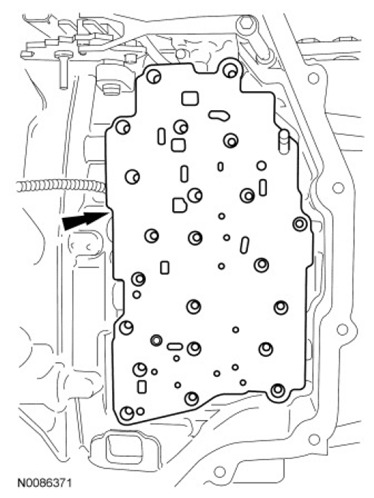

Fig 2: View Of Main Control-To-Transaxle Case Separator Plate

Courtesy of FORD MOTOR CO.

Position the OSS and TR sensor wiring harnesses aside and install the main control-to-transaxle separator plate.

NOTE: Make sure that the manual lever pin (part of the TR sensor) is correctly installed in the manual valve.

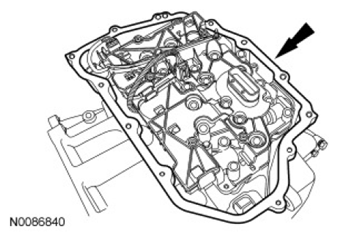

Fig 3: Locating Main Control Valve Body

Courtesy of FORD MOTOR CO.

Install the main control.

NOTE: Make sure not to pinch the Output Shaft Speed (OSS) or Transmission Range (TR) sensor wiring harnesses when installing the main control or damage to the sensors can occur.

NOTE: Install the different length bolts in the locations noted during disassembly.

Install the main control valve body, the main control valve body nut and the 22 main control valve body bolts. Tighten in a crisscross pattern.
- Tighten to 10 Nm (89 lb-in).

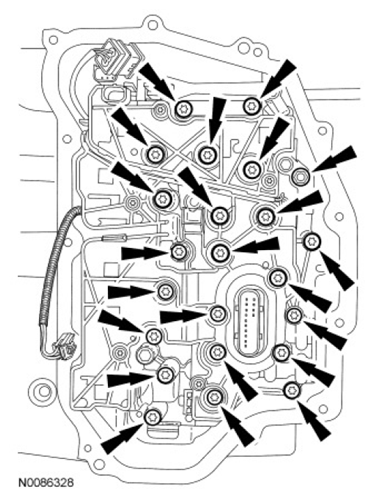

  Fig 4: View Of Main Control Bolts And Nut
  Courtesy of FORD MOTOR CO.
Route the OSS sensor wiring harness and connect the electrical connector.

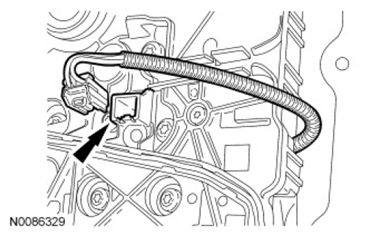

Fig 5: Locating Output Shaft Speed Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the TR sensor electrical connector.

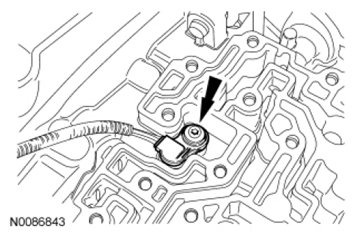

Fig 6: Locating Transmission Range Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Install the main control-to-main control cover grommet.

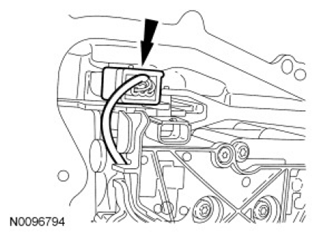

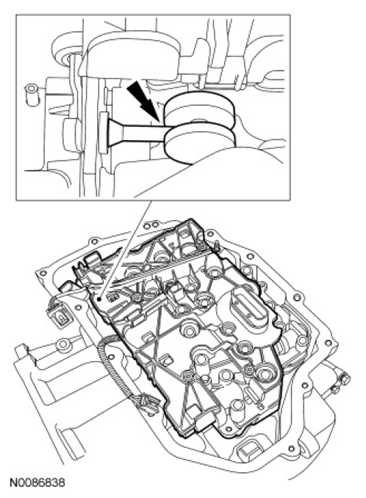

Fig 7: Locating Main Control Cover Grommet
Courtesy of FORD MOTOR CO.
Clean the main control cover sealing surface and inspect for damage.

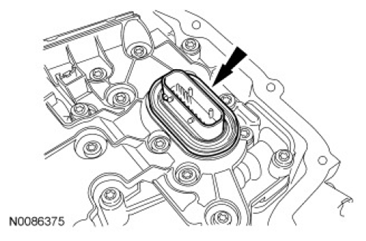

Fig 8: Locating Sealant Applying Area On Main Control Cover
Courtesy of FORD MOTOR CO.
Apply silicone to the main control sealing surface of the transaxle case.

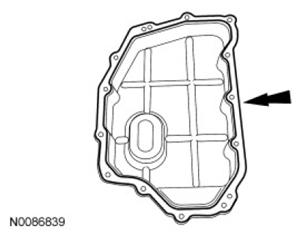

Fig 9: View Of Sealant Applying Area On Transaxle Case
Courtesy of FORD MOTOR CO.
Position the main control cover in place.

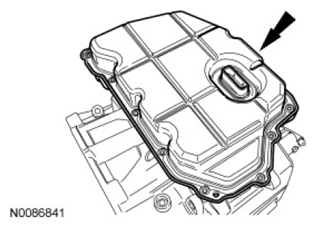

Fig 10: View Of Main Control Cover
Courtesy of FORD MOTOR CO.

NOTE: Inspect the main control-to-main control cover grommet to make sure that the seals is on the inside of the main control cover. Transmission fluid leak will occur.

NOTE: Install the stud bolts in the locations noted during disassembly.

Tighten the 8 main control cover bolts and 5 stud bolts.
- Tighten to 12 Nm (106 lb-in).

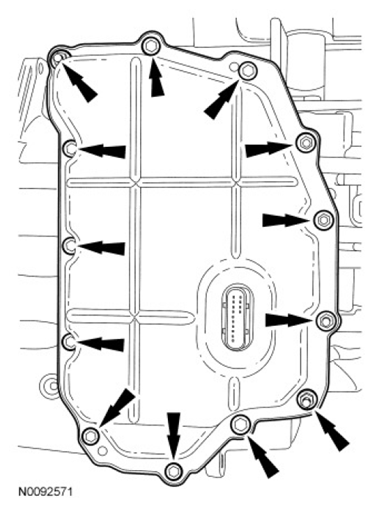

  Fig 11: Remove/Install Main Control Cover Bolts And Stud Bolts
  Courtesy of FORD MOTOR CO.
Position the transmission fluid cooler tube bracket and transmission fluid cooler tube assembly in place and install the 2 nuts.
- Tighten to 9 Nm (80 lb-in).

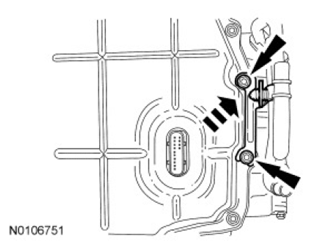

  Fig 12: View Of Transmission Fluid Cooler Tube Bracket And Tubes With Nuts
  Courtesy of FORD MOTOR CO.
Connect the transaxle vehicle harness electrical connector.

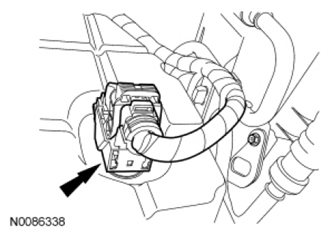

Fig 13: Locating Transaxle Vehicle Harness Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the transaxle electrical wiring harness retainers to the transmission fluid pan stud bolts.

Fig 14: Locating Transaxle Electrical Wiring Harness Retainers
Courtesy of FORD MOTOR CO.
Install the LH splash shield and the retainers.

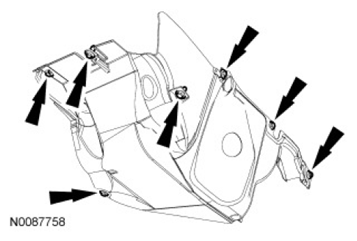

Fig 15: Locating LH Splash Shield Retainers
Courtesy of FORD MOTOR CO.
Fill the transaxle with clean transmission fluid.
Using the scan tool with the engine running, check and make sure that the transmission is at normal operating temperature 85-93°C (185-200°F). Check and adjust the transmission fluid level and check for any leaks. If transmission fluid is needed, add transmission fluid in increments of 0.24L (0.5 pt) until the correct level is achieved.
