Halfshaft Seal - RH, Front Wheel Drive (FWD): Removal

WARNING: This page is about a different variant/trim than selected.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
Remove the intermediate shaft. For additional information, refer to FRONT DRIVE HALFSHAFTS article.
Using a suitable awl, poke a small hole in the halfshaft seal.

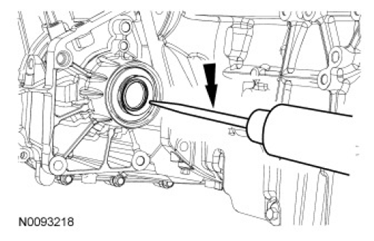

Fig 1: Poking Small Hole In Halfshaft Seal Using Suitable Awl
Courtesy of FORD MOTOR CO.
Using a suitable dent puller, remove the halfshaft seal.

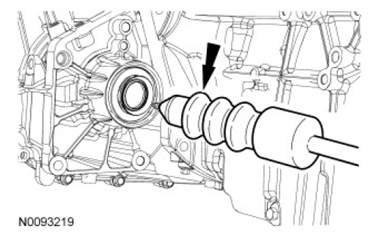

Fig 2: Removing Halfshaft Seal Using Suitable Dent Puller
Courtesy of FORD MOTOR CO.
