Halfshaft Seal - RH, Front Wheel Drive (FWD): Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install a new halfshaft seal on the Differential Seal Installer and Handle.

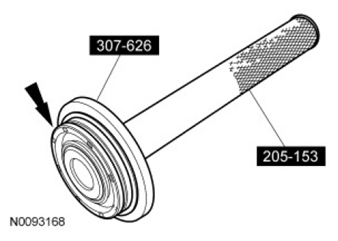

    Fig 1: Installing Halfshaft Seal On Differential Seal Installer And Handle
    G07444048Courtesy of FORD MOTOR CO.
  2. Using the Differential Seal Installer and Handle, install the RH halfshaft seal.

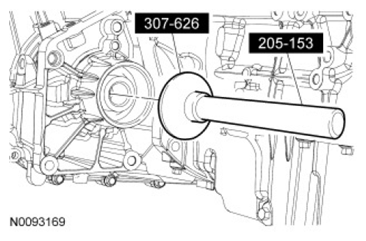

    Fig 2: Installing RH Halfshaft Seal Using Differential Seal Installer And Handle
    G07444049Courtesy of FORD MOTOR CO.
  3. Install the intermediate shaft. For additional information, refer to FRONT DRIVE HALFSHAFTS article.
  4. Fill the transaxle with clean transmission fluid.
  5. Using the scan tool with the engine running, check and make sure that the transmission is at normal operating temperature 85-93°C (185-200°F). Check and adjust the transmission fluid level and check for any leaks. If transmission fluid is needed, add transmission fluid in increments of 0.24L (0.5 pt) until the correct level is achieved.
