Halfshaft Seal - RH, All Wheel Drive (AWD): Removal

WARNING: This page is about a different variant/trim than selected.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
Remove the Power Transfer Unit (PTU). For additional information, refer to TRANSFER CASE - POWER TRANSFER UNIT (PTU) article.
Using a suitable awl, poke a small hole in the RH transaxle differential seal.

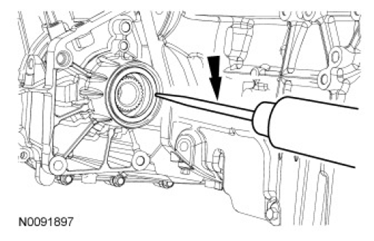

Fig 1: Poking Small Hole In RH Transaxle Differential Seal Using Suitable Awl
Courtesy of FORD MOTOR CO.
Using a suitable dent puller, remove the halfshaft seal.

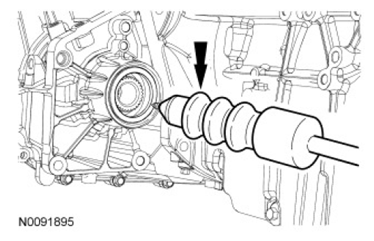

Fig 2: Removing Halfshaft Seal Using Suitable Dent Puller
Courtesy of FORD MOTOR CO.
