Halfshaft Seal - RH, All Wheel Drive (AWD): Installation

WARNING: This page is about a different variant/trim than selected.

Install a new halfshaft seal on the RH Halfshaft Fluid Seal Installer.

Fig 1: Installing Halfshaft Seal On RH Halfshaft Fluid Seal Installer
Courtesy of FORD MOTOR CO.
Using the RH Halfshaft Fluid Seal Installer, install the RH halfshaft seal.

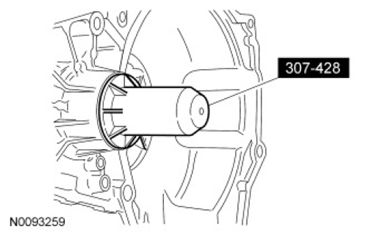

Fig 2: Installing RH Halfshaft Seal Using RH Halfshaft Fluid Seal Installer
Courtesy of FORD MOTOR CO.
Install the PTU . For additional information, refer to TRANSFER CASE - POWER TRANSFER UNIT (PTU) article.
Fill the transaxle with clean transmission fluid.
Using the scan tool with the engine running, check and make sure that the transmission is at normal operating temperature 85-93°C (185-200°F). Check and adjust the transmission fluid level and check for any leaks. If transmission fluid is needed, add transmission fluid in increments of 0.24L (0.5 pt) until the correct level is achieved.
