Transmission Fluid Drain and Refill: Material
WARNING: This page is about a different variant/trim than selected.
ITEM SPECIFICATION CHART
| Item | Specification |
|---|---|
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC |
MERCON® LV |
NOTE:
In order to completely clean the torque converter, this procedure needs to be carried out 3 times.
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.

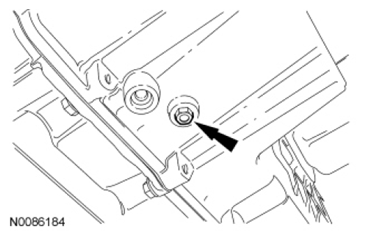

- Remove the transmission fluid drain plug and allow the transmission fluid to drain.
- Install the transmission fluid drain plug.
- Tighten to 12 Nm (106 lb-in).

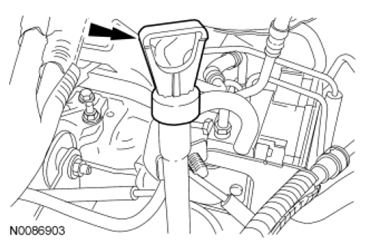

- Fill the transaxle with clean transmission fluid.
- Start the engine and let it run for 3 minutes. Move the range selector lever into each gear position. Repeat Steps 2, 3, 4 and 5 two more times.
- After the transmission fluid has been changed a total of 3 times, using the scan tool with the engine running, check and make sure that the transmission is at normal operating temperature 85-93°C (185-200°F). Check and adjust the transmission fluid level and check for any leaks. If transmission fluid is needed, add transmission fluid in increments of 0.24L (0.5 pt) until the correct level is achieved.
NOTE:
If an internal problem is suspected, drain the transmission fluid through a paper filter. A small amount of metal or friction particles may be found from normal wear. If an excessive amount of metal or friction material is present, the transaxle will need to be overhauled.
