Main Control Valve Body: Disassembly

WARNING: This page is about a different variant/trim than selected.

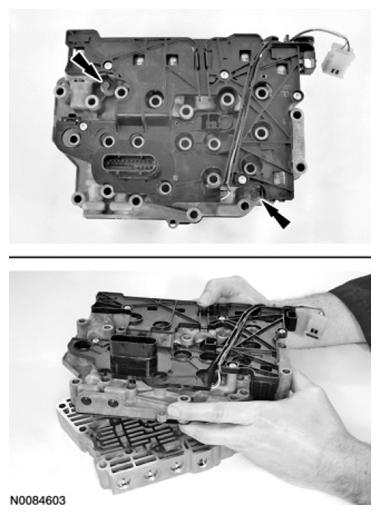

Remove the 2 bolts and separate the solenoid body from the valve body.

Fig 1: Separating Solenoid Body From Valve Body
Courtesy of FORD MOTOR CO.

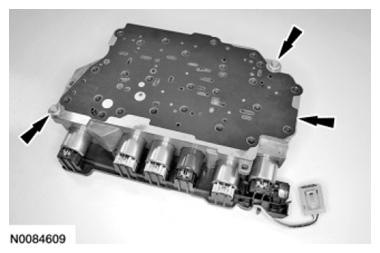

Remove the 2 bolts and remove and discard the separator plate.

Fig 2: Remove/Install Separator Plate Bolts
Courtesy of FORD MOTOR CO.

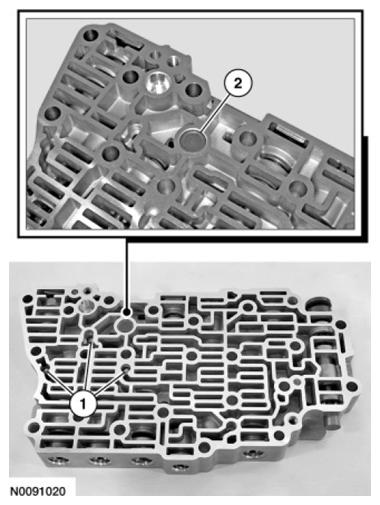

Remove the 3 check balls and the damper.
1. Check balls
2. Solenoid damper

  Fig 3: Identifying Check Balls And Damper
  Courtesy of FORD MOTOR CO.

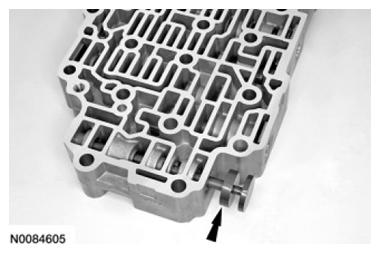

Remove the manual valve.

Fig 4: Locating Manual Valve
Courtesy of FORD MOTOR CO.

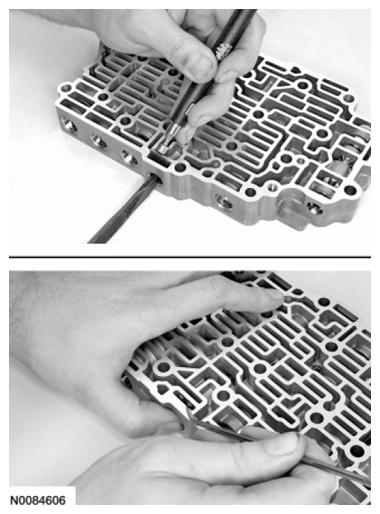

NOTE: Remove the valves by tapping the valve body on the palm of the hand to slide the valves out of the bores or by threading a 4-mm bolt into the valves and pulling them out. It may be necessary to remove the valves and springs using a pick. If it is necessary to use a pick, use extreme caution to prevent damaging the valves or valve bores. If necessary, disassemble parts of the main control valve body in small groups. Take special care when handling the main control components, since they are the most precise and delicate parts of the transaxle. Neatly arrange the parts as they are removed to avoid mixing similar pieces.

NOTE: Do not stone or polish any valves or damage to the valves can occur. If the valves do not move freely, install a new assembly.

NOTE: The bypass valve is held in with a spring-loaded retainer. Be careful not to lose the retainer when removing it.

Fig 5: Removing Bypass Valve Retainer

Courtesy of FORD MOTOR CO.

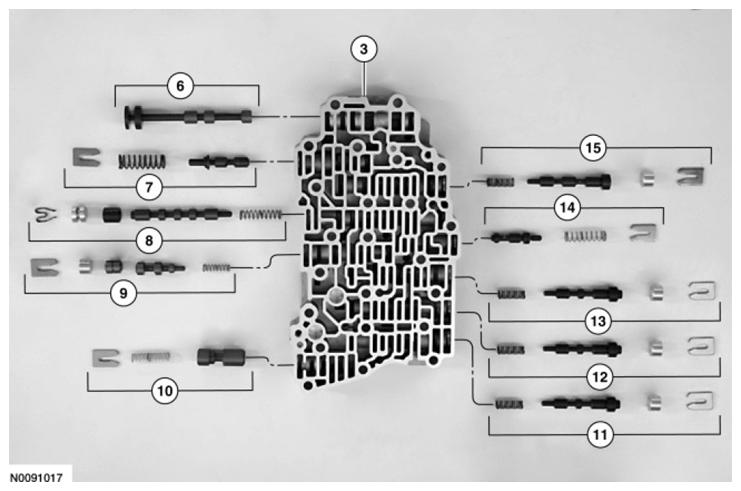

Compress the valve springs with a screwdriver and remove the retainers with a magnet. Use a pick to remove the bypass valve retainer. Remove the individual valves and springs from the main control valve body by tapping the valve body on the palm of the hand to slide the valves out of the bores. If needed, use a 4-mm bolt to thread into the valves to remove the valves. See Figure for valve and spring locations. Clean valves, springs and main control valve body.
