Clutch Support Tower: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Using a suitable tool, remove and discard the 4 Teflon® seals.

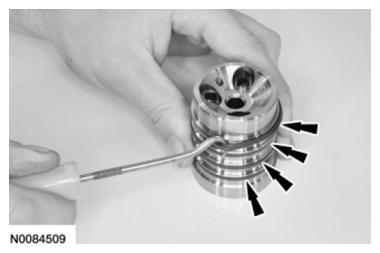

    Fig 1: Removing Teflon® Seals Using Suitable Tool
    G07444311Courtesy of FORD MOTOR CO.
  2. Clean and inspect the clutch support tower for damage. Install a new clutch support tower if damaged.

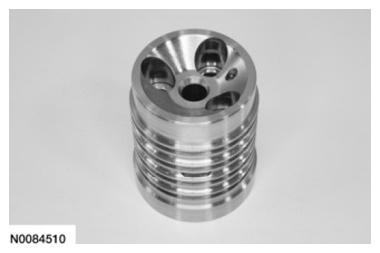

    Fig 2: Inspecting Clutch Support Tower For Damage
    G07444312Courtesy of FORD MOTOR CO.
