Center Support: Disassembly

WARNING: This page is about a different variant/trim than selected.
    NOTE: The forward clutch piston in the center support is the side of the center support with the short legs.

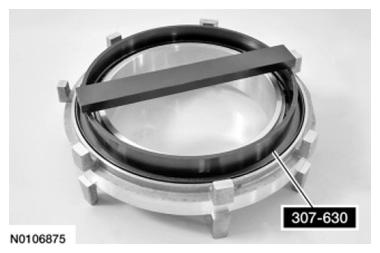

    Fig 1: View Of Center Support Piston Spring Compressor
    G07444435Courtesy of FORD MOTOR CO.
  1. Install the Center Support Piston Spring Compressor 307-630 on the forward (1, 2, 3, 4) clutch return spring.
  2. Using the Center Support Piston Spring Compressor 307-630 and a press, compress the forward (1, 2, 3, 4) clutch return spring and remove the snap ring.

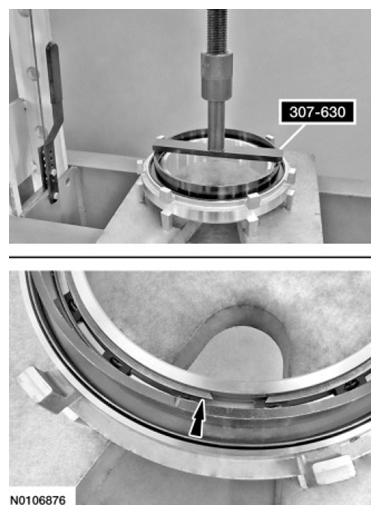

    Fig 2: Remove/Install Snap Ring Using Special Tool
    G07444436Courtesy of FORD MOTOR CO.
  3. Remove the Center Support Piston Spring Compressor 307-630.

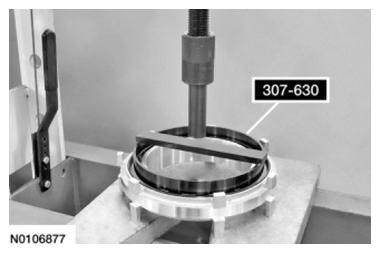

    Fig 3: Removing Center Support Piston Spring Compressor 307-630
    G07444437Courtesy of FORD MOTOR CO.
  4. Remove the return spring from the Center Support Piston Spring Compressor 307-630 or the forward (1, 2, 3, 4) clutch piston.

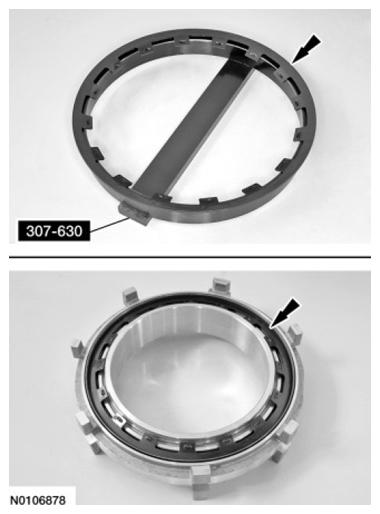

    Fig 4: Removing Return Spring From Center Support Piston Spring Compressor
    G07444438Courtesy of FORD MOTOR CO.
  5. Apply 483 kPa (70 psi) of air pressure to the forward (1, 2, 3, 4) clutch piston port and remove the forward (1, 2, 3, 4) clutch piston.

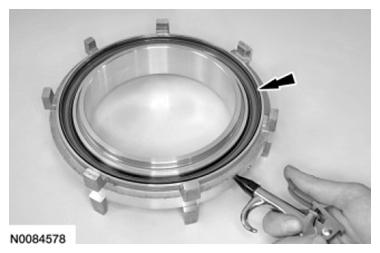

    Fig 5: Identifying Forward Clutch Piston And Applying Compressed Air
    G07444439Courtesy of FORD MOTOR CO.
  6. Install the Center Support Piston Spring Compressor 307-630 on the low/reverse return spring.

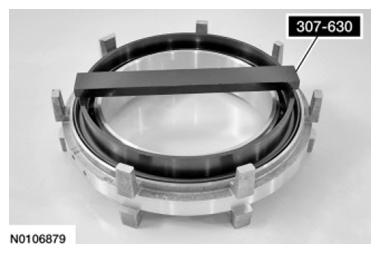

    Fig 6: Identifying Center Support Piston Spring Compressor
    G07444440Courtesy of FORD MOTOR CO.
  7. Using the Center Support Piston Spring Compressor 307-630 and a press, compress the low/reverse clutch return spring and remove the snap ring.

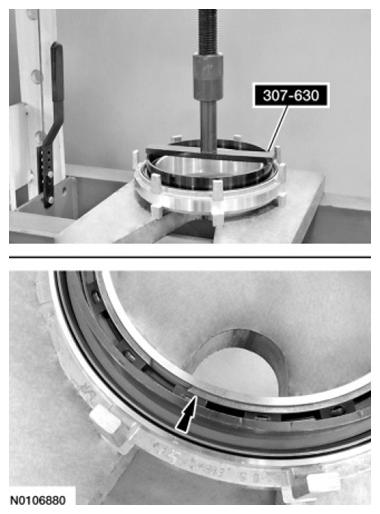

    Fig 7: Remove/Install Snap Ring Using Special Tool
    G07444441Courtesy of FORD MOTOR CO.
  8. Remove the Center Support Piston Spring Compressor 307-630.

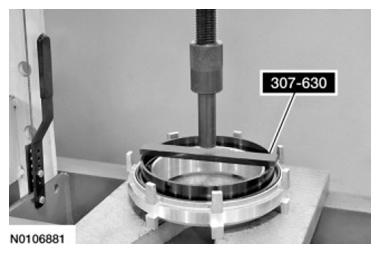

    Fig 8: Identifying Center Support Piston Spring Compressor
    G07444442Courtesy of FORD MOTOR CO.
  9. Remove the low/reverse clutch return spring.

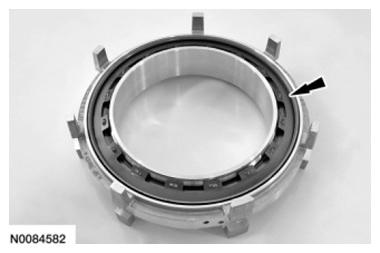

    Fig 9: Identifying Low/Reverse Clutch Return Spring
    G07444443Courtesy of FORD MOTOR CO.
  10. Apply 483 kPa (70 psi) of air pressure to the low/reverse clutch piston port and remove the low/reverse clutch piston.

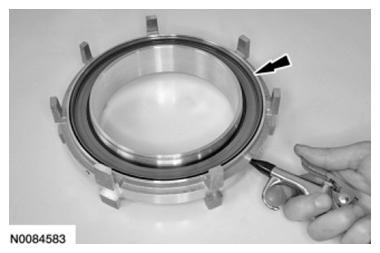

    Fig 10: Identifying Low/Reverse Clutch Piston And Applying Compressed Air
    G07444444Courtesy of FORD MOTOR CO.
