Center Support: Assembly

WARNING: This page is about a different variant/trim than selected.

Clean and inspect the center support for damage. Install a new center support if necessary.
Install the Low Reverse Piston Seal Protector 307-628/1 and 307-628/2 on the center support.

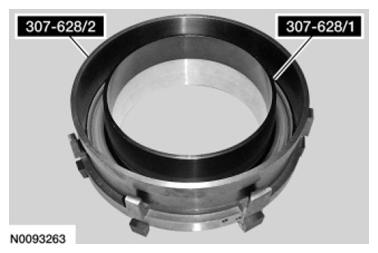

Fig 1: Identifying Low Reverse Piston Seal Protector
Courtesy of FORD MOTOR CO.
Lubricate the sealing surfaces of the low/reverse piston with petroleum jelly.

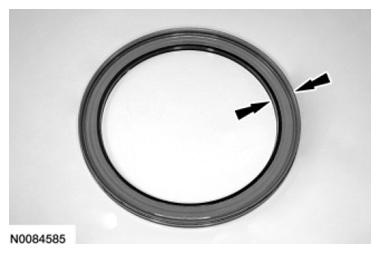

Fig 2: Identifying Sealant Applying Area On Low/Reverse Piston With Petroleum Jelly
Courtesy of FORD MOTOR CO.
Position the low/reverse clutch piston on the Low Reverse Piston Seal Protector 307-628/1 and 307-628/2 and push it down into the center support.

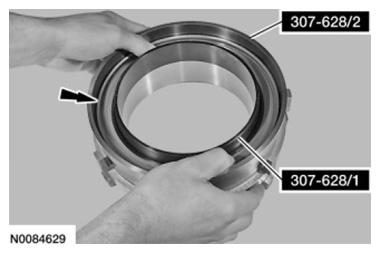

Fig 3: Positioning Low/Reverse Clutch Piston On Low Reverse Piston Seal Protector
Courtesy of FORD MOTOR CO.
Remove the Low Reverse Piston Seal Protector 307-628/1 and 307-628/2.

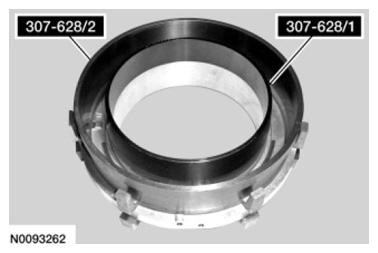

Fig 4: Identifying Low Reverse Piston Seal Protector
Courtesy of FORD MOTOR CO.
Install the low/reverse piston return spring.

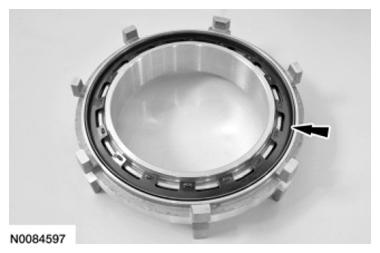

Fig 5: Identifying Low/Reverse Clutch Return Spring
Courtesy of FORD MOTOR CO.
Install the Center Support Piston Spring Compressor 307-630 on the low/reverse piston return spring.

Fig 6: Identifying Center Support Piston Spring Compressor
Courtesy of FORD MOTOR CO.

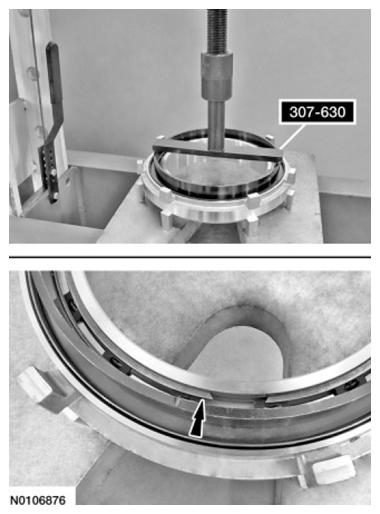

Using the Center Support Piston Spring Compressor 307-630 and a press, compress the low/reverse clutch return spring and install the snap ring.

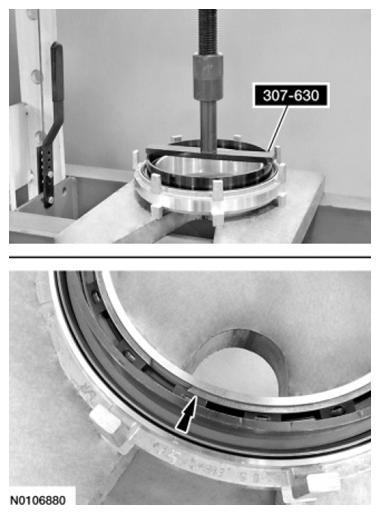

Fig 7: Remove/Install Snap Ring Using Special Tool
Courtesy of FORD MOTOR CO.
Remove the Center Support Piston Spring Compressor 307-630.

Fig 8: Identifying Center Support Piston Spring Compressor
Courtesy of FORD MOTOR CO.
Inspect the snap ring to be sure it is seated in the groove on the center support.

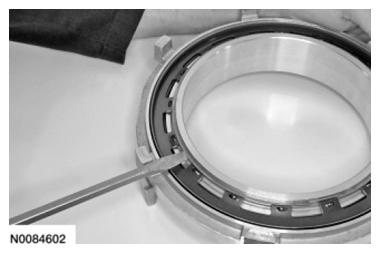

Fig 9: Inspecting Snap Ring
Courtesy of FORD MOTOR CO.

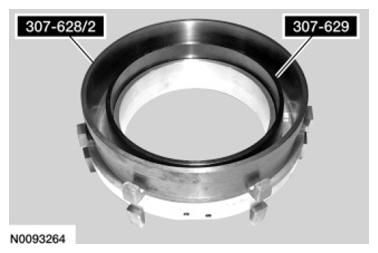

Turn the center support over and install the Low Reverse Piston Seal Protector 307-628/2 and the Low Reverse / 1-2-3-4 Piston Seal Protector 307-629 on the center support.

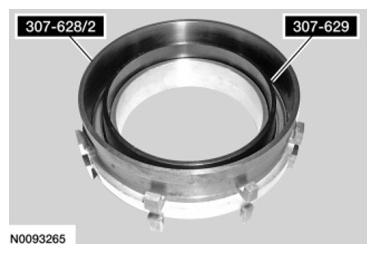

Fig 10: Identifying Low Reverse Piston Seal Protector
Courtesy of FORD MOTOR CO.

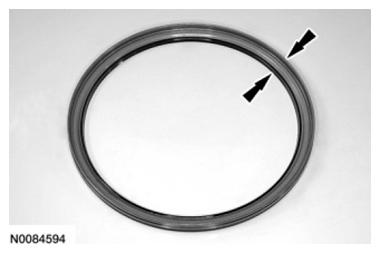

Lubricate the sealing surfaces of the forward (1, 2, 3, 4) clutch piston with petroleum jelly.

Fig 11: Identifying Sealant Applying Area On Forward Clutch Piston With Petroleum Jelly
Courtesy of FORD MOTOR CO.
Position the forward (1, 2, 3, 4) clutch piston on Low Reverse Piston Seal Protector 307-628/2 and the Low Reverse / 1-2-3-4 Piston Seal Protector 307-629 and push it down into the center support.

Fig 12: Positioning Forward Clutch Piston On Low Reverse Piston Seal Protector
Courtesy of FORD MOTOR CO.

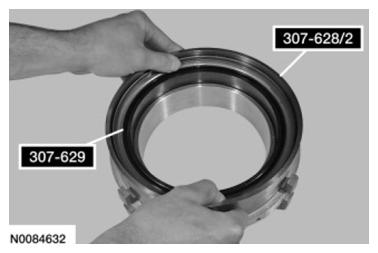

Remove Low Reverse Piston Seal Protector 307-628/2 and the Low Reverse / 1-2-3-4 Piston Seal Protector 307-629.

Fig 13: Identifying Low Reverse Piston Seal Protector And Low Reverse / 1-2-3-4 Piston Seal Protector
Courtesy of FORD MOTOR CO.

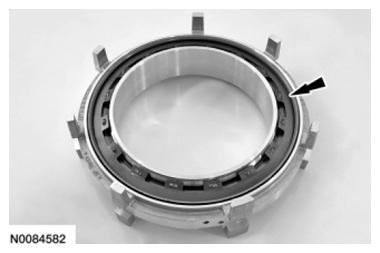

Install the forward (1, 2, 3, 4) clutch piston return spring.

Fig 14: Locating Forward Clutch Piston Return Spring
Courtesy of FORD MOTOR CO.

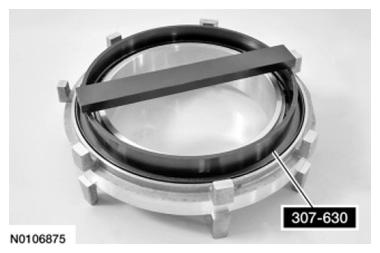

Install the Center Support Piston Spring Compressor 307-630 on the forward (1, 2, 3, 4) clutch return spring.

Fig 15: View Of Center Support Piston Spring Compressor
Courtesy of FORD MOTOR CO.
Using the Center Support Piston Spring Compressor 307-630 and a press, compress the forward (1, 2, 3, 4) clutch return spring and install the snap ring.

Fig 16: Remove/Install Snap Ring Using Special Tool
Courtesy of FORD MOTOR CO.

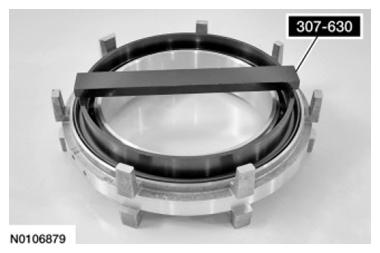

Remove the Center Support Piston Spring Compressor 307-630.

Fig 17: View Of Center Support Piston Spring Compressor
Courtesy of FORD MOTOR CO.

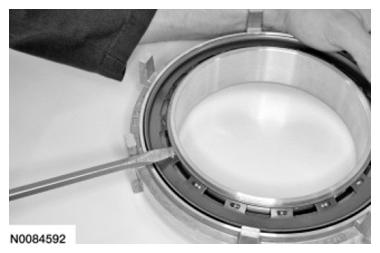

Inspect the snap ring to be sure it is seated in the groove on the center support.

Fig 18: Inspecting Snap Ring
Courtesy of FORD MOTOR CO.
