Transaxle Cooling
WARNING: This page is about a different variant/trim than selected.

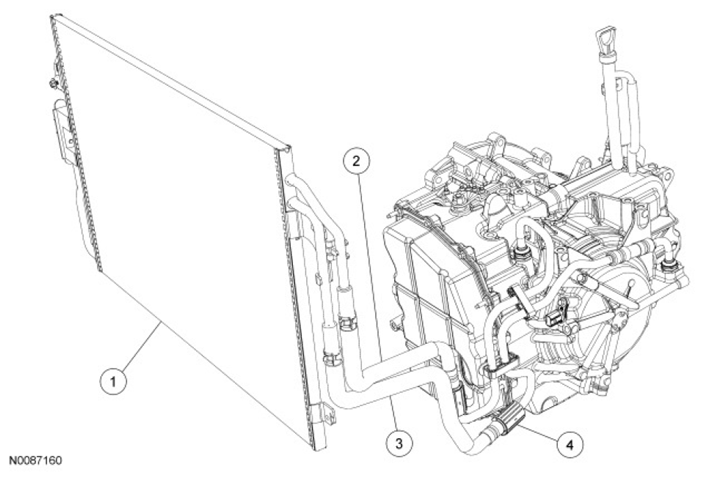

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 19712 | Transmission fluid cooler |
| 2 | 7F113 | Transmission fluid cooler outlet tube and hose assembly |
| 3 | 7F112 | Transmission fluid cooler inlet tube and hose assembly |
| 4 | 7J081 | Transmission fluid cooler tube secondary latches |
When internal wear or damage has occurred in the transaxle, metal particles, clutch plate material or band material may have been carried into the torque converter and transaxle fluid cooler. These contaminants are a major cause of recurring transaxle troubles and must be removed from the system before the transaxle is put back into use. Refer to TRANSMISSION FLUID COOLER BACKFLUSHING AND CLEANING in this service information.
