Turbine Shaft Speed (TSS) Sensor

WARNING: This page is about a different variant/trim than selected.

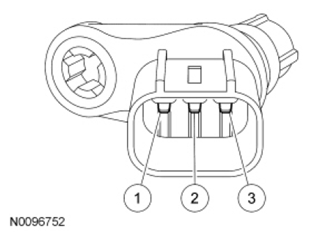

Fig 1: Identifying Turbine Shaft Speed Sensor Connector Terminals
G07443762Courtesy of FORD MOTOR CO.
PIN NUMBER REFERENCE CHART

Pin Number Circuit Function
1 Turbine Shaft Speed (TSS) sensor ground
2 TSS  sensor signal
3 TSS  sensor power
