Transmission Range (TR) Sensor

WARNING: This page is about a different variant/trim than selected.

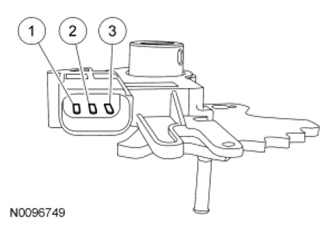

Fig 1: Identifying Transmission Range Sensor Connector Terminals
G07443757Courtesy of FORD MOTOR CO.
PIN NUMBER REFERENCE CHART

Pin Number Circuit Function
1 Transmission Range (TR) power
2 TR  signal
3 TR  ground
