Solenoid Body Leadframe-to-Solenoid Internal Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

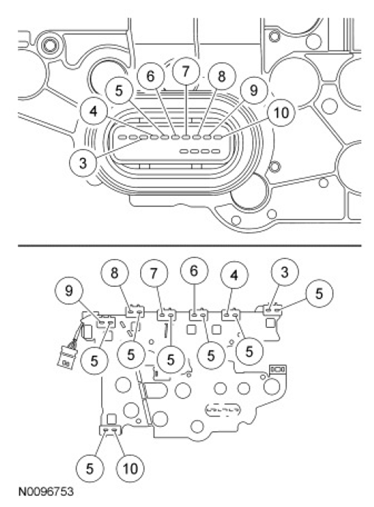

Fig 1: Identifying Solenoid Body Leadframe-To-Solenoid Internal Circuit Diagram Connector Terminals
G07443763Courtesy of FORD MOTOR CO.
PIN NUMBER REFERENCE CHART

Solenoid Body Leadframe Main Connector Pin Number Circuit Function
3 Pressure Control Solenoid A (PCA) control
4 Shift Solenoid C (SSC) control
5 Solenoid power supply circuit
6 Torque Converter Clutch (TCC) solenoid control
7 Shift Solenoid E (SSE) control
8 Shift Solenoid A (SSA) control
9 Shift Solenoid B (SSB) control
10 Shift Solenoid D (SSD) control
