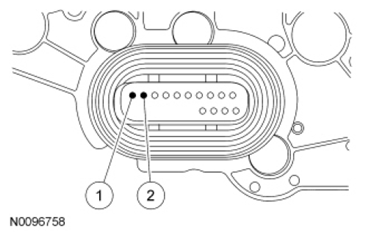

Solenoid Body Leadframe Transmission Fluid Temperature (TFT) Sensor Pins
WARNING: This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR CO. PIN NUMBER REFERENCE CHART
| Pin Number |
Circuit Function |
| 1 |
Transmission Fluid Temperature (TFT) signal return |
| 2 |
TFT
signal |
