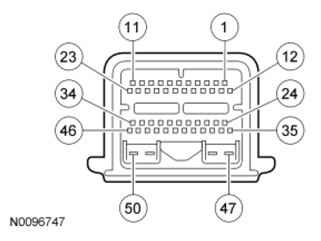

PCM Transaxle Harness - C175T
WARNING: This page is about a different variant/trim than selected.
PIN NUMBER REFERENCE CHART
| Pin Number | Circuit Function |
|---|---|
| 1 | Transmission Range (TR), Output Shaft Speed (OSS) and Turbine Shaft Speed (TSS) voltage supply |
| 10 | Shift Solenoid D (SSD) |
| 11 | Shift Solenoid E (SSE) |
| 16 | TSS sensor signal |
| 19 | Transmission Fluid Temperature (TFT) sensor signal |
| 25 | OSS sensor signal |
| 31 | Transmission Control Switch (TCS) |
| 34 | Line Pressure Control (LPC) |
| 36 | TR , OSS and TSS sensor ground |
| 39 | TR signal |
| 41 | TFT signal return |
| 43 | Shift Solenoid B (SSB) |
| 44 | Shift Solenoid C (SSC) |
| 45 | Shift Solenoid A (SSA) |
| 46 | Torque Converter Clutch (TCC) solenoid |
| 50 | Transaxle solenoid power control voltage |
