Output Shaft Speed (OSS) Sensor
WARNING: This page is about a different variant/trim than selected.

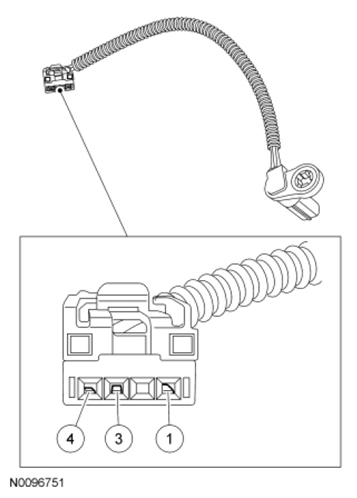

Courtesy of FORD MOTOR CO. PIN NUMBER REFERENCE CHART
| Pin Number |
Circuit Function |
| 1 |
Output Shaft Speed (OSS) sensor ground |
| 3 |
OSS
signal |
| 4 |
OSS
sensor power |
